TURBO PRO 55 4S - 2010-2011 - 292553038/S10 - Stiga Rotary Mower Blade Diagram

Description

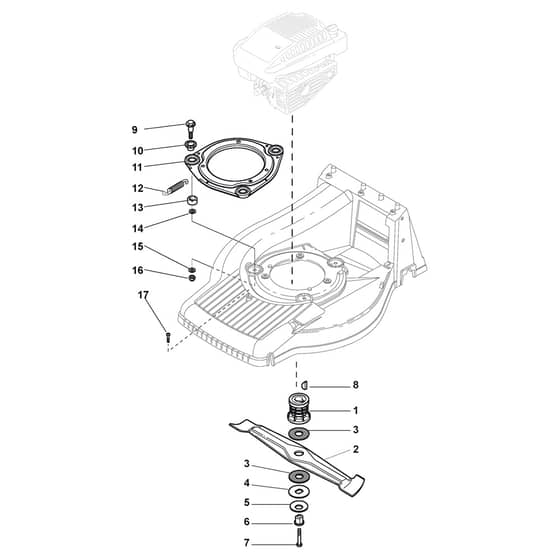

Stiga TURBO PRO 55 4S Parts Diagram

Product Name - TURBO PRO 55 4S

Model Year - 2010-2011

Model Type - TU 554 TR 4S

Art.N - 292553038/S10

Engine Model - GCV 190 OHC Autochoke

	Part No.	Details
1	MO122465637/0 Available to backorder	Hub With Pulley. Crankshaft Ø 25	£15.89 £13.24
2	MO181004134/0 Available to backorder	Blade Winged	£28.27 £23.56
3	MO322672111/0 In stock	Washer	£3.92 £3.27
4	MO322672105/0 In stock	Washer	£3.55 £2.96
5	MO112508120/0 In stock	Cup Spring	£3.52 £2.93
6	MO122041940/0 Available to backorder	Bushing	£6.62 £5.52
7	MO112736825/0 Available to backorder	Screw AVS	£2.94 £2.45
8	MO112139150/0 In stock	Feather. Crankshaft Ø 25	£2.11 £1.76
9	MO122524329/0 Available to backorder	Pin	£12.26 £10.22
10	MO322672201/0 In stock	Washer	£6.05 £5.04
11	MO381207221/1 Available to backorder	Flange. Black	£30.98 £25.82
12	MO122450445/0 Available to backorder	Spring	£14.86 £12.38
13	MO322250012/0 In stock	No Vibrations Rubber	£8.59 £7.16
14	MO122671651/0 In stock	Washer	£1.97 £1.64
15	MO112523060/0 In stock	Washer	£1.55 £1.29
16	MO112155000/0 In stock	Nut	£1.55 £1.29
17	MO112735661/0 Available to backorder	Screw Tcb Torx M6 X 10	£1.63 £1.36
