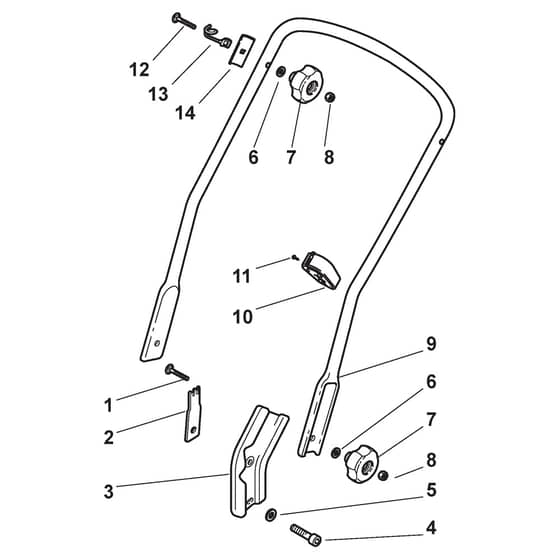

TURBO PRO 50 S B - 2016 - 292502028/S16 - Stiga Rotary Mower Handle Lower Part Diagram

Name: TURBO PRO 50 S B - 2016 - 292502028/S16 - Stiga Rotary Mower Handle Lower Part Diagram
SKU: turbo_pro_50_s_b_292502028_s16_handle_lower_part-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TURBO PRO 50 S B - 2016 - 292502028/S16 - Stiga Rotary Mower Handle Lower Part Diagram

Description

Stiga TURBO PRO 50 S B Parts Diagram

Product Name - TURBO PRO 50 S B

Model Year - 2016

Model Type - TU 504 TR

Art.N - 292502028/S16

Engine Model - 675 EXi series Ready Start

Be the first to review this product

0 product questions

	Part No.	Details
2	MO322551635/0 Available to backorder	Handle Clamp Fix Plate	£4.13 £3.44
3	MO322778405/0 Available to backorder	Support	£23.89 £19.91
4	MO112760515/0 Available to backorder	Screw	£1.55 £1.29
6	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
7	MO322399810/0 In stock	Black Knob	£8.29 £6.91
8	MO112361005/0 Available to backorder	Nut	£4.22 £3.52
9	MO381006631/0 Available to backorder	Handle. Lower Part Yellow Yellow	£44.56 £37.13
10	MO322192001/0 Available to backorder	Clamp	£1.55 £1.29
11	MO112728706/0 In stock	Screw	£1.55 £1.29
12	MO112820655/0 In stock	Screw	£1.40 £1.17
13	MO122430311/0 In stock	Starting Rope Guide Spring	£6.90 £5.75
14	MO322545137/0 Available to backorder	Handle Clamp Plate	£1.55 £1.29
