TURBO PRO 50 S B - 2014-2015 - 292502028/S14 - Stiga Rotary Mower Handle Upper Part Diagram

Name: TURBO PRO 50 S B - 2014-2015 - 292502028/S14 - Stiga Rotary Mower Handle Upper Part Diagram
SKU: turbo_pro_50_s_b_292502028_s14_handle_upper_part-group
Price: 1.29 GBP
Availability: InStock

Part No. turbo_pro_50_s_b_292502028_s14_handle_upper_part-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

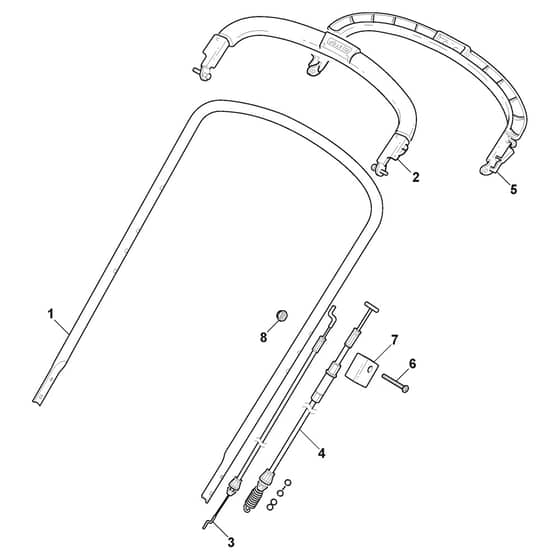

TURBO PRO 50 S B - 2014-2015 - 292502028/S14 - Stiga Rotary Mower Handle Upper Part Diagram

Description

Stiga TURBO PRO 50 S B Parts Diagram

Product Name - TURBO PRO 50 S B

Model Year - 2014-2015

Model Type - TU 504 TR

Art.N - 292502028/S14

Engine Model - Briggs & Stratton 675 EX series XVS Ready Start

	Part No.	Details
1	MO381006866/0 Available to backorder	Handle. Upper Part Grey	£27.58 £22.98
1	MO381006632/1 Available to backorder	Handle. Upper Part	£28.14 £23.45
3	MO181000692/0 In stock	Cable. Thread Engine Brake	£13.31 £11.09
4	MO381000697/0 In stock	Cable Rear Drive	£20.27 £16.89
5	MO381003297/1 In stock	Driving Lever From 01-9-2004	£22.10 £18.42
6	MO112727783/0 Available to backorder	Screw	£1.70 £1.42
7	MO322551685/0 In stock	Cable Holder	£7.52 £6.27
8	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55 £1.29
