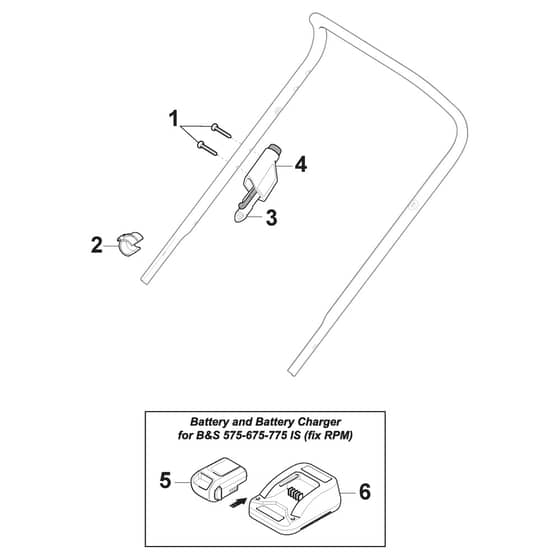

TURBO POWER 53 SE B - 2017-2019 - 292166528/S17 - Stiga Rotary Mower Electric Start Controls Diagram

Name: TURBO POWER 53 SE B - 2017-2019 - 292166528/S17 - Stiga Rotary Mower Electric Start Controls Diagram
SKU: turbo_power_53_se_b_292166528_s17_electric_start_controls-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TURBO POWER 53 SE B - 2017-2019 - 292166528/S17 - Stiga Rotary Mower Electric Start Controls Diagram

Description

Stiga TURBO POWER 53 SE B Parts Diagram

Product Name - TURBO POWER 53 SE B

Model Year - 2017-2019

Model Type - NP 534 TR/E

Art.N - 292166528/S17

Engine Model - 675 IS series InStart

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112728702/0 Available to backorder	Screw	£1.55 £1.29
2	MO133320022/0 Available to backorder	Fastpoint Clamp	£1.55 £1.29
3	MO322076570/1 In stock	Battery Safety Key	£5.48 £4.57
4	MO381600401/1 Available to backorder	Ignition Switch	£98.54 £82.12
5	MO1111-9319-01 In stock	Battery From 01-1-2019	£181.66 £151.38
6	MO118204137/1 Available to backorder	Battery Charger Li-Ion B&S Is [Uk Plug]	£82.36 £68.63
6	MO118204137/0 Available to backorder	Battery Charger UK plug To 31-8-2017	£99.95 £83.29
6	MO118204136/1 Available to backorder	Battery Charger EU plug From 01-9-2017	£126.36 £105.30
