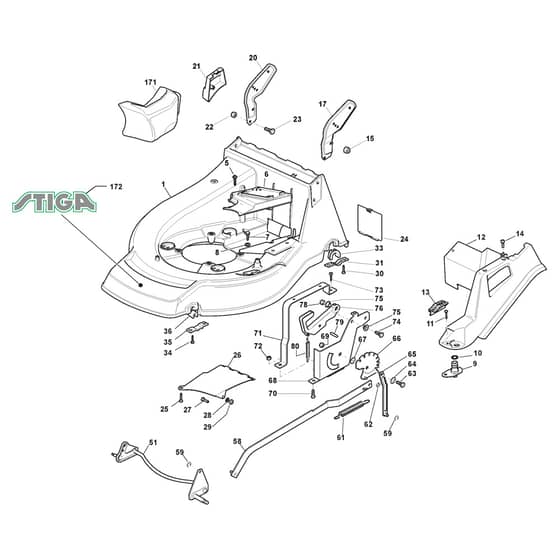

TURBO POWER 53 SE B - 2017-2019 - 292166528/S17 - Stiga Rotary Mower Deck and Height Adjusting Diagram

Name: TURBO POWER 53 SE B - 2017-2019 - 292166528/S17 - Stiga Rotary Mower Deck and Height Adjusting Diagram
SKU: turbo_power_53_se_b_292166528_s17_deck_and_height_adjusting-grou
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TURBO POWER 53 SE B - 2017-2019 - 292166528/S17 - Stiga Rotary Mower Deck and Height Adjusting Diagram

Description

Stiga TURBO POWER 53 SE B Parts Diagram

Product Name - TURBO POWER 53 SE B

Model Year - 2017-2019

Model Type - NP 534 TR/E

Art.N - 292166528/S17

Engine Model - 675 IS series InStart

Be the first to review this product

0 product questions

	Part No.	Details
5	MO112728522/0 Available to backorder	Screw	£1.55 £1.29
6	MO322060200/1 Available to backorder	Belt Protection Not For BBC Models	£4.37 £3.64
8	MO112523040/0 In stock	Washer	£1.49 £1.24
9	MO122034000/0 Available to backorder	Washing Connection	£1.69 £1.41
10	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
11	MO112728519/0 Available to backorder	Screw	£1.40 £1.17
12	MO322060144/3 Available to backorder	Deck. Adjustment	£12.82 £10.68
13	MO122570200/0 Available to backorder	Position Plate	£1.55 £1.29
14	MO112728520/0 Available to backorder	Screw	£1.40 £1.17
17	MO322778397/1 Available to backorder	Left Bracket	£13.37 £11.14
20	MO322778396/1 Available to backorder	Right Bracket	£13.37 £11.14
21	MO122601001/0 Available to backorder	Right Bracket Protection	£1.97 £1.64
24	MO122595352/0 Available to backorder	Inspection Door	£2.26 £1.88
26	MO322108205/1 Available to backorder	Conveyor	£10.20 £8.50
27	MO112789000/0 Available to backorder	Screw	£1.55 £1.29
28	MO112523020/0 In stock	Washer	£1.55 £1.29
29	MO112154330/0 In stock	Nut	£1.55 £1.29
31	MO322545147/0 Available to backorder	Plate	£1.97 £1.64
33	MO322038407/0 Available to backorder	Brass	£1.49 £1.24
34	MO112731350/0 Available to backorder	Screw	£1.55 £1.29
35	MO322545156/0 Available to backorder	Plate	£1.40 £1.17
36	MO122038400/1 Available to backorder	Brass	£1.82 £1.52
51	MO381302865/0 Available to backorder	Axle. Front Wheels	£42.29 £35.24
58	MO381002040/0 Available to backorder	Rod. Height Adjustment	£32.38 £26.98
59	MO112000930/0 In stock	Circlip Ø6	£1.55 £1.29
61	MO122446187/0 Available to backorder	Spring	£7.31 £6.09
62	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
63	MO122529662/0 Available to backorder	Fulcrum Pin	£3.19 £2.66
64	MO322672151/0 Available to backorder	Antifriction Washer	£1.82 £1.52
65	MO381001269/0 Available to backorder	Rear Wheel Axle	£5.64 £4.70
66	MO381000479/2 Available to backorder	Sector. Height Adjustment	£8.23 £6.86
67	MO322672152/0 Available to backorder	Antifriction Washer	£1.82 £1.52
68	MO322785109/0 Available to backorder	Support. Height Adjustment	£6.62 £5.52
69	MO112155000/0 In stock	Nut	£1.55 £1.29
71	MO322785113/0 Available to backorder	Handle Support	£3.24 £2.70
73	MO112729600/0 Available to backorder	Screw	£1.55 £1.29
74	MO112793301/0 In stock	Screw	£1.55 £1.29
75	MO125038002/1 In stock	Bushing	£1.55 £1.29
76	MO322393611/2 Available to backorder	Height Adjustment Handle	£4.50 £3.75
78	MO112293201/0 In stock	Nut	£1.69 £1.41
79	MO112622640/0 Available to backorder	Pin To 31-8-2018	£1.55 £1.29
79	MO112622640/1 Available to backorder	Pin From 01-9-2018	£1.55 £1.29
80	MO122446175/0 Available to backorder	Spring	£2.26 £1.88
171	MO322140224/1 Available to backorder	Mulching Deflector	£39.42 £32.85
172	MO114367494/2 Available to backorder	Emblem Decal Stiga 3D 93 X 19mm	£9.16 £7.63
