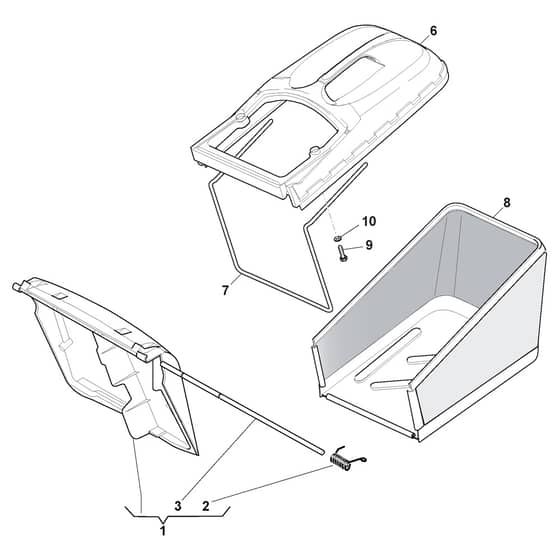

TURBO POWER 53 S B - 2016-2019 - 292166028/S16 - Stiga Rotary Mower Grass Catcher Diagram

Name: TURBO POWER 53 S B - 2016-2019 - 292166028/S16 - Stiga Rotary Mower Grass Catcher Diagram
SKU: turbo_power_53_s_b_292166028_s16_grass_catcher-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TURBO POWER 53 S B - 2016-2019 - 292166028/S16 - Stiga Rotary Mower Grass Catcher Diagram

Description

Stiga TURBO POWER 53 S B Parts Diagram

Product Name - TURBO POWER 53 S B

Model Year - 2016-2019

Model Type - NP 534 TR

Art.N - 292166028/S16

Engine Model - 675 EXi series Ready Start

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381008050/1 Available to backorder	Stone Guard. Black From 27-1-2020	£30.97 £25.81
2	MO122451000/0 Available to backorder	Spring	£4.78 £3.98
3	MO122517856/1 Available to backorder	Pin	£5.06 £4.22
6	MO322486398/0 Available to backorder	Grass-Box. Grey Upper Part	£27.59 £22.99
7	MO122608526/1 Available to backorder	Lower Stiffening From S.N 20JA2WBH030875	£12.53 £10.44
8	MO181102334/0 Available to backorder	Box. Fabric Black with STIGA Logo	£66.16 £55.13
8	MO181102447/0 Available to backorder	Box. Fabric (Reinforced)	£64.75 £53.96
9	MO112728722/0 Available to backorder	Screw	£1.55 £1.29
10	MO112523050/0 In stock	Washer M6 6.6 X 24 X 2	£1.55 £1.29
