TURBO POWER 53 S B - 2011 - 292166021/S11 - Stiga Rotary Mower Blade Diagram

Name: TURBO POWER 53 S B - 2011 - 292166021/S11 - Stiga Rotary Mower Blade Diagram
SKU: turbo_power_53_s_b_292166021_s11_blade-group
Price: 1.29 GBP
Availability: InStock

Part No. turbo_power_53_s_b_292166021_s11_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

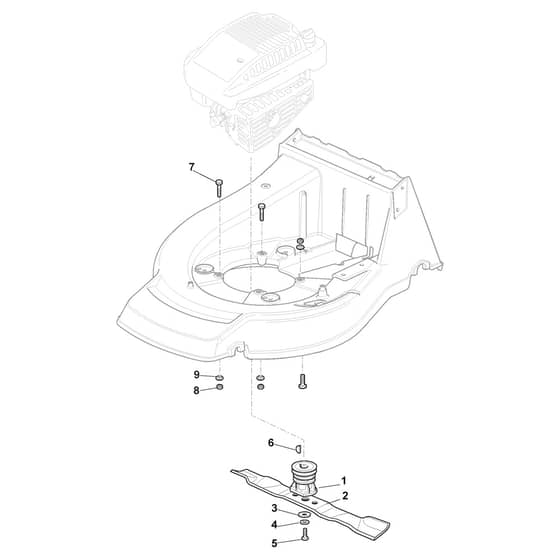

TURBO POWER 53 S B - 2011 - 292166021/S11 - Stiga Rotary Mower Blade Diagram

Description

Stiga TURBO POWER 53 S B Parts Diagram

Product Name - TURBO POWER 53 S B

Model Year - 2011

Model Type - NP 534 TR

Art.N - 292166021/S11

Engine Model -

	Part No.	Details
1	MO122465607/4 In stock	Hub With Pulley. Crankshaft Ø 22.2 From 01-1-2019	£9.30 £7.75
2	MO181004366/2 In stock	Blade Stiga Packed into 181004366.2 To 31-8-2018	£13.84 £11.53
2	MO181004381/1 In stock	Blade Standard	£15.41 £12.84
3	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
4	MO112523080/0 In stock	Washer	£1.55 £1.29
5	MO112735698/0 In stock	Screw	£1.84 £1.53
6	MO112139100/0 In stock	Key	£1.55 £1.29
7	MO112691910/0 Available to backorder	Screw	£1.73 £1.44
8	MO112155000/0 In stock	Nut	£1.55 £1.29
9	MO112521350/0 In stock	Washer	£1.55 £1.29
