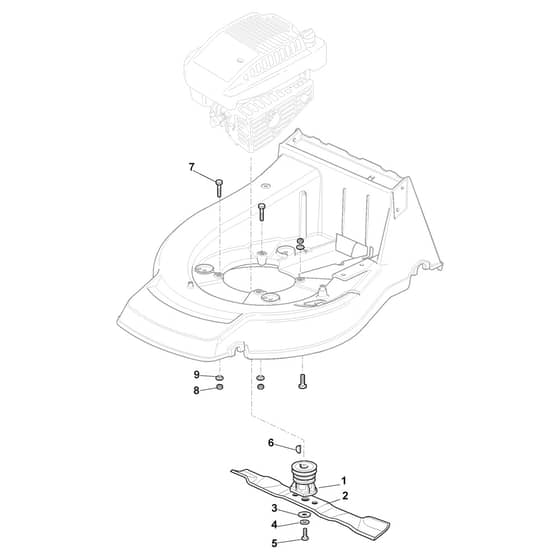

TURBO POWER 50 S H - 2017-2019 - 295506038/S17 - Stiga Rotary Mower Blade Diagram

Name: TURBO POWER 50 S H - 2017-2019 - 295506038/S17 - Stiga Rotary Mower Blade Diagram
SKU: turbo_power_50_s_h_295506038_s17_blade-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TURBO POWER 50 S H - 2017-2019 - 295506038/S17 - Stiga Rotary Mower Blade Diagram

Description

Stiga TURBO POWER 50 S H Parts Diagram

Product Name - TURBO POWER 50 S H

Model Year - 2017-2019

Model Type - PAN 504 TR

Art.N - 295506038/S17

Engine Model - GCV 160 OHC Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122465608/3 In stock	Hub With Pulley. Crankshaft Ø 25 From 01-1-2019	£9.23 £7.69
2	MO181004366/2 In stock	Blade	£15.36 £12.80
2	MO181004381/1 In stock	Blade Stiga Packed into 181004381.1 To 31-8-2018	£17.10 £14.25
3	MO122160400/0 In stock	Elastic Disc	£1.82 £1.52
4	MO112523080/0 In stock	Washer	£1.55 £1.29
5	MO112735698/0 In stock	Screw	£1.82 £1.52
6	MO112139150/0 In stock	Feather. Crankshaft Ø 25	£2.12 £1.77
7	MO112691910/0 Available to backorder	Screw	£1.73 £1.44
8	MO112155000/0 In stock	Nut	£1.55 £1.29
9	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
