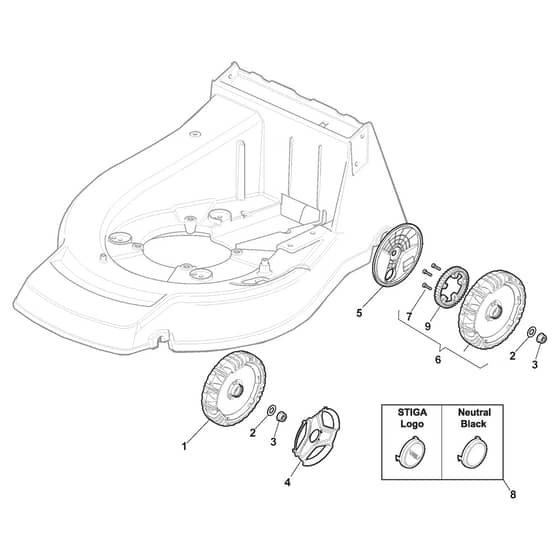

TURBO POWER 50 S - 2019-2020 - 295506048/ST1 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Name: TURBO POWER 50 S - 2019-2020 - 295506048/ST1 - Stiga Rotary Mower Wheels and Hub Caps Diagram
SKU: turbo_power_50_s_295506048_st1_wheels_and_hub_caps-group
Price: 1.29 GBP
Availability: InStock

Part No. turbo_power_50_s_295506048_st1_wheels_and_hub_caps-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TURBO POWER 50 S - 2019-2020 - 295506048/ST1 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Description

Stiga TURBO POWER 50 S Parts Diagram

Product Name - TURBO POWER 50 S

Model Year - 2019-2020

Model Type - PAN 504 TR

Art.N - 295506048/ST1

Engine Model - ST 170 OHV Autochoke

	Part No.	Details
1	MO381007498/0 In stock	Wheel Ø 210	£32.18 £26.82
2	MO112521350/0 In stock	Washer	£1.55 £1.29
3	MO112155000/0 In stock	Nut	£1.55 £1.29
4	MO322110796/0 Available to backorder	Hub Cap Grey	£3.10 £2.58
5	MO322600336/0 Available to backorder	Protection. Wheel	£4.64 £3.87
6	MO381007802/0 Available to backorder	Wheel Ø210	£38.00 £31.67
7	MO112728706/0 In stock	Screw	£1.60 £1.33
8	MO322110799/0 Available to backorder	Cap Standard Black	£1.97 £1.64
8	MO322110798/0 Available to backorder	Hub Cap Grey with STIGA Logo	£2.24 £1.87
9	MO322120119/0 Available to backorder	Wheels Crown	£5.22 £4.35
