TURBO EXCEL PRO 50 S INOX H - 2010 - 290516038/S10 - Stiga Rotary Mower Handle Upper Part Diagram

Name: TURBO EXCEL PRO 50 S INOX H - 2010 - 290516038/S10 - Stiga Rotary Mower Handle Upper Part Diagram
SKU: turbo_excel_pro_50_s_inox_h_290516038_s10_handle_upper_part-grou
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TURBO EXCEL PRO 50 S INOX H - 2010 - 290516038/S10 - Stiga Rotary Mower Handle Upper Part Diagram

Description

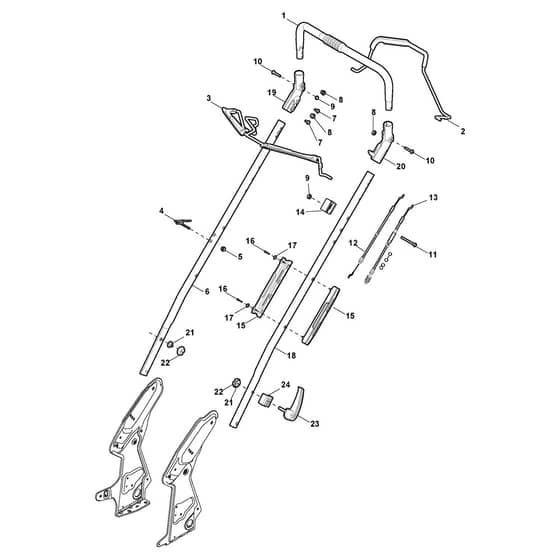

Stiga TURBO EXCEL PRO 50 S INOX H Parts Diagram

Product Name - TURBO EXCEL PRO 50 S INOX H

Model Year - 2010

Model Type - DMT 504 W TR

Art.N - 290516038/S10

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381006670/2 Available to backorder	Handle Tube	£27.88 £23.23
2	MO381003349/0 Available to backorder	Lever. Driving	£47.87 £39.89
3	MO381003344/1 Available to backorder	Lever. Engine Brake Red	£49.26 £41.05
4	MO122430309/0 Available to backorder	Spring	£3.10 £2.58
5	MO112154330/0 In stock	Nut	£1.55 £1.29
6	MO381006895/0 Available to backorder	Handle Black. Right	£35.20 £29.33
7	MO112735662/1 In stock	Screw	£2.40 £2.00
8	MO322041967/1 Available to backorder	Bushing From 01-9-2011	£1.55 £1.29
9	MO112154510/0 In stock	Nut	£1.55 £1.29
10	MO112728721/0 Available to backorder	Screw	£1.82 £1.52
11	MO112727786/0 Available to backorder	Screw	£1.97 £1.64
12	MO181030066/0 Available to backorder	Cable. Thread Engine Brake	£17.20 £14.33
13	MO381030068/0 Available to backorder	Cable Rear Drive	£22.67 £18.89
14	MO322551639/0 In stock	Cable Holder	£14.44 £12.03
15	MO322806644/0 Available to backorder	Protection	£2.40 £2.00
16	MO112727812/0 Available to backorder	Screw	£1.55 £1.29
17	MO112523000/1 Available to backorder	Washer	£1.55 £1.29
18	MO381006897/0 Available to backorder	Handle Black. Left	£45.04 £37.53
19	MO322488301/0 Available to backorder	Joint Sleeve Grey Right	£24.22 £20.18
20	MO322488303/0 Available to backorder	Joining Sleeve Grey Left	£24.22 £20.18
21	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
22	MO381004310/0 In stock	Black Knob	£1.97 £1.64
23	MO381103359/1 In stock	Locking Handle Lever	£5.06 £4.22
24	MO322680017/0 Available to backorder	Washer	£1.97 £1.64
