TURBO EXCEL 55 S H B - 2011 - 290558031/S10 - Stiga Rotary Mower Blade Diagram

Name: TURBO EXCEL 55 S H B - 2011 - 290558031/S10 - Stiga Rotary Mower Blade Diagram
SKU: turbo_excel_55_s_h_b_290558031_s10_blade-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TURBO EXCEL 55 S H B - 2011 - 290558031/S10 - Stiga Rotary Mower Blade Diagram

Description

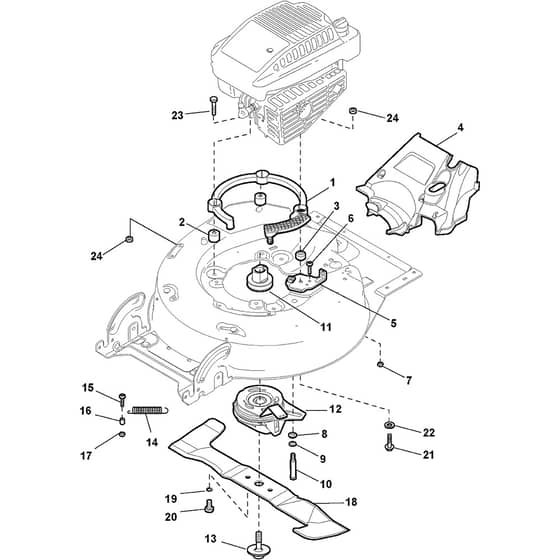

Stiga TURBO EXCEL 55 S H B Parts Diagram

Product Name - TURBO EXCEL 55 S H B

Model Year - 2011

Model Type - DML 554 W TR

Art.N - 290558031/S10

Engine Model - GCV 190 OHC Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
2	MO122170835/0 Available to backorder	Spacer	£6.62 £5.52
3	MO122170836/1 Available to backorder	Spacer From 01-9-2009	£8.45 £7.04
6	MO112727807/0 In stock	Screw	£1.55 £1.29
8	MO122671653/0 Available to backorder	Washer	£1.55 £1.29
9	MO112540060/0 Available to backorder	Washer	£1.55 £1.29
10	MO122534127/0 Available to backorder	Stake	£9.58 £7.98
11	MO122601923/0 Available to backorder	Pulley. Crankshaft Ø 25	£91.51 £76.26
12	MO118399051/0 Available to backorder	Blade Brake Clutch	£316.75 £263.96
13	MO112735460/0 Available to backorder	Screw	£9.28 £7.73
14	MO122446188/0 Available to backorder	Spring	£10.42 £8.68
15	MO112727801/0 Available to backorder	Screw	£1.55 £1.29
16	MO122170846/0 Available to backorder	Spacer	£3.10 £2.58
17	MO112154510/0 In stock	Nut	£1.55 £1.29
18	MO181004455/0 Available to backorder	Mulching Blade	£26.66 £22.22
19	MO112540070/0 Available to backorder	Washer	£1.55 £1.29
20	MO112794110/1 Available to backorder	Screw	£2.12 £1.77
21	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
22	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
23	MO112691700/0 In stock	Screw	£1.82 £1.52
24	MO112154210/0 Available to backorder	Self-Lock Winged Nut M8 Din 6927	£1.69 £1.41
