TURBO EXCEL 55 S H AVS - 2011 - 290556031/S11 - Stiga Rotary Mower Transmission Diagram

Name: TURBO EXCEL 55 S H AVS - 2011 - 290556031/S11 - Stiga Rotary Mower Transmission Diagram
SKU: turbo_excel_55_s_h_avs_290556031_s11_transmission-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

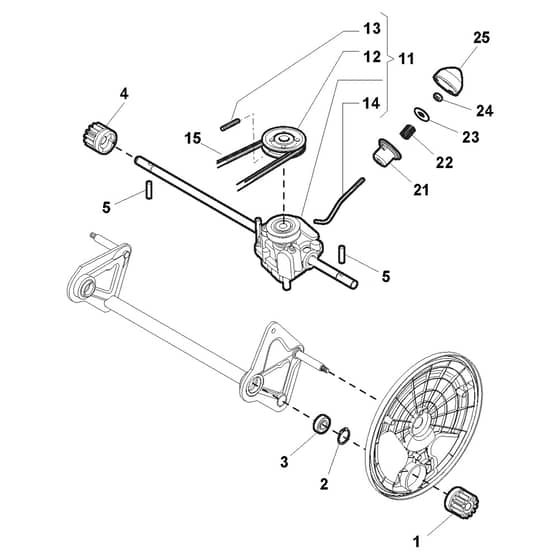

TURBO EXCEL 55 S H AVS - 2011 - 290556031/S11 - Stiga Rotary Mower Transmission Diagram

Description

Stiga TURBO EXCEL 55 S H AVS Parts Diagram

Product Name - TURBO EXCEL 55 S H AVS

Model Year - 2011

Model Type - DML 554 W TR

Art.N - 290556031/S11

Engine Model - GCV 190 OHC Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122570132/0 Available to backorder	Left Pinion	£11.69 £9.74
2	MO112608600/0 In stock	Seeger	£1.55 £1.29
3	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
4	MO122570131/0 Available to backorder	Right Pinion	£11.69 £9.74
5	MO122753000/0 In stock	Pin	£1.55 £1.29
11	MO181003106/1 Available to backorder	Gear Box From 01-9-2011	£136.55 £113.79
11	MO181003103/0 Available to backorder	Gear Box To 31-8-2009	£165.50 £137.92
12	MO122601908/1 Available to backorder	Pulley From 01-9-2009	£11.53 £9.61
12	MO122601909/0 In stock	Pulley To 31-8-2009	£5.64 £4.70
13	MO112645705/0 In stock	Elastic Pin	£1.55 £1.29
14	MO122033290/0 Available to backorder	Adjustment Rod From 01-9-2009	£7.70 £6.42
14	MO122033288/0 Available to backorder	Adjustment Rod To 31-8-2009	£17.33 £14.44
15	MO135064392/0 Available to backorder	Belt	£12.91 £10.76
21	MO122041957/1 Available to backorder	Bushing	£1.55 £1.29
22	MO122450063/0 Available to backorder	Spring	£1.55 £1.29
23	MO322680009/0 Available to backorder	Washer	£1.82 £1.52
24	MO112154510/0 In stock	Nut	£1.55 £1.29
25	MO122110230/0 In stock	Hub Cover To 31-8-2009	£1.55 £1.29
25	MO322109550/0 Available to backorder	Rod Cup From 01-9-2009	£1.40 £1.17
