TURBO EXCEL 55 S H AVS - 2011 - 290556031/S11 - Stiga Rotary Mower Blade Diagram

Name: TURBO EXCEL 55 S H AVS - 2011 - 290556031/S11 - Stiga Rotary Mower Blade Diagram
SKU: turbo_excel_55_s_h_avs_290556031_s11_blade-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TURBO EXCEL 55 S H AVS - 2011 - 290556031/S11 - Stiga Rotary Mower Blade Diagram

Description

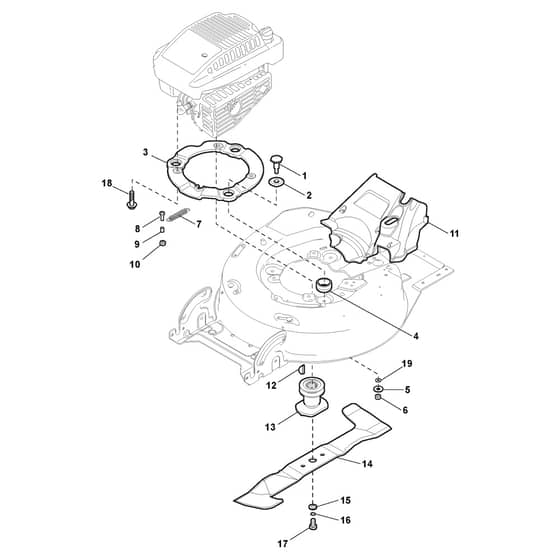

Stiga TURBO EXCEL 55 S H AVS Parts Diagram

Product Name - TURBO EXCEL 55 S H AVS

Model Year - 2011

Model Type - DML 554 W TR

Art.N - 290556031/S11

Engine Model - GCV 190 OHC Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122519816/0 Available to backorder	Pin	£12.19 £10.16
2	MO322672201/0 Available to backorder	Washer	£6.04 £5.03
3	MO322207226/1 Available to backorder	Flange From 01-9-2015	£35.20 £29.33
4	MO322250014/0 Available to backorder	Rubber	£6.34 £5.28
5	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
6	MO112155000/0 In stock	Nut	£1.55 £1.29
7	MO122450461/0 Available to backorder	Spring	£4.93 £4.11
8	MO112727801/0 Available to backorder	Screw	£1.55 £1.29
9	MO122170846/0 Available to backorder	Spacer	£3.10 £2.58
10	MO112154510/0 In stock	Nut	£1.55 £1.29
12	MO112139100/0 In stock	Key	£1.55 £1.29
13	MO122465638/2 In stock	Hub With Pulley. Crankshaft Ø 22.2 From 01-9-2011	£34.43 £28.69
14	MO181004454/0 Available to backorder	Mulching Blade	£27.30 £22.75
15	MO122160400/0 In stock	Elastic Disc	£1.82 £1.52
16	MO112523080/0 In stock	Washer	£1.55 £1.29
17	MO112736815/0 Available to backorder	Screw	£4.78 £3.98
18	MO112735108/1 Available to backorder	Screw	£2.12 £1.77
19	MO122170850/0 In stock	Distance Flangia Avs X Rsb Diamond	£4.13 £3.44
