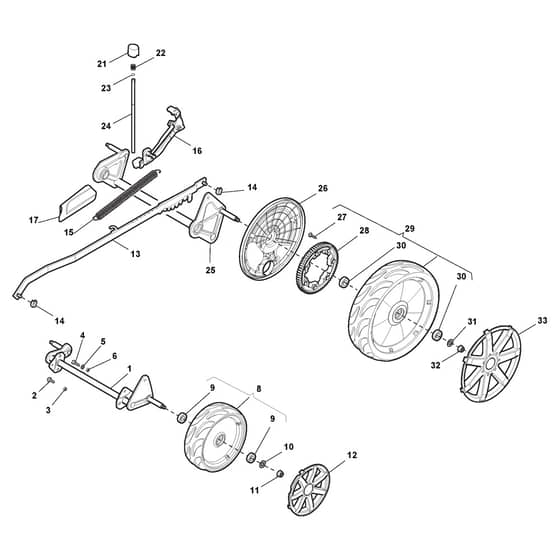

TURBO EXCEL 55 S B - 2010 - 290556021/S10 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Name: TURBO EXCEL 55 S B - 2010 - 290556021/S10 - Stiga Rotary Mower Wheels and Hub Caps Diagram
SKU: turbo_excel_55_s_b_290556021_s10_wheels_and_hub_caps-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TURBO EXCEL 55 S B - 2010 - 290556021/S10 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Description

Stiga TURBO EXCEL 55 S B Parts Diagram

Product Name - TURBO EXCEL 55 S B

Model Year - 2010

Model Type - DML 554 W TR

Art.N - 290556021/S10

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381002869/0 Available to backorder	Front Wheel Axle To 31-August-2009	£49.66 £41.38
1	MO381302801/0 Available to backorder	Front Wheel Axle From 01-9-2009	£44.56 £37.13
2	MO112815206/0 Available to backorder	Screw	£1.55 £1.29
4	MO112727799/0 Available to backorder	Screw	£1.82 £1.52
5	MO112523040/0 In stock	Washer	£1.49 £1.24
6	MO112154510/0 In stock	Nut	£1.55 £1.29
8	MO381007394/1 Available to backorder	Wheel From 01-9-2009	£44.93 £37.44
12	MO322110636/0 Available to backorder	Hub Cap Grey	£2.53 £2.11
13	MO381002035/0 Available to backorder	Rod. Height Adjustment From 01-9-2009	£56.32 £46.93
14	MO112436050/0 In stock	Plate	£1.82 £1.52
15	MO122450459/1 Available to backorder	Spring From 01-9-2009	£12.32 £10.27
23	MO112000930/0 In stock	Circlip Ø6	£1.55 £1.29
26	MO322600179/0 Available to backorder	Internal Wheel Protectection	£5.86 £4.88
27	MO112728706/0 In stock	Screw	£1.55 £1.29
28	MO322120113/0 Available to backorder	Wheels Crown	£11.82 £9.85
29	MO381007398/1 Available to backorder	Wheel Ø 300 From 01-9-2009	£60.54 £50.45
30	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
31	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
32	MO112155000/0 In stock	Nut	£1.55 £1.29
33	MO322110599/0 Available to backorder	Hub Cap Grey	£4.20 £3.50
