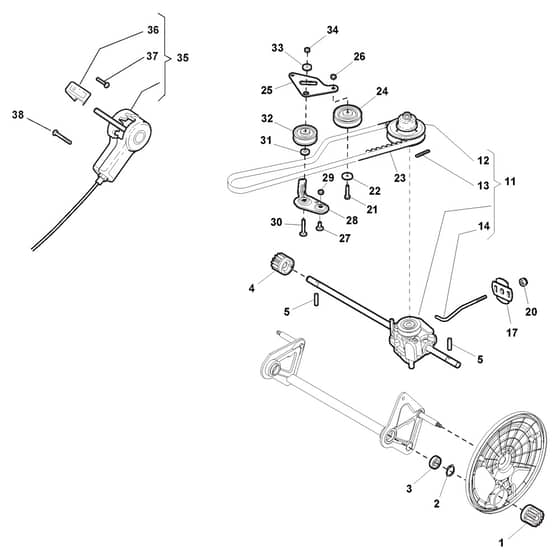

TURBO EXCEL 55 4S INOX B - 2010 - 290567021/S10 - Stiga Rotary Mower Transmission Diagram

Description

Stiga TURBO EXCEL 55 4S INOX B Parts Diagram

Product Name - TURBO EXCEL 55 4S INOX B

Model Year - 2010

Model Type - DML 554 W TR 4S

Art.N - 290567021/S10

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122570132/0 Available to backorder	Left Pinion	£11.69 £9.74
2	MO112608600/0 In stock	Seeger	£1.55 £1.29
3	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
4	MO122570131/0 Available to backorder	Right Pinion	£11.69 £9.74
5	MO122753000/0 In stock	Pin	£1.55 £1.29
11	MO181003107/1 Available to backorder	Gear Box From 01-9-2011	£182.84 £152.37
11	MO181003104/0 Available to backorder	Gear Box To 31-8-2009	£190.04 £158.37
12	MO122601932/0 In stock	Pulley From 01-9-2013	£57.43 £47.86
12	MO122601925/0 Available to backorder	Pulley To 31-8-2013	£66.16 £55.13
13	MO112645700/0 Available to backorder	Elastic Pin	£1.55 £1.29
14	MO122033298/0 Available to backorder	Adjustment Rod From 01-9-2009	£7.52 £6.27
17	MO322675113/0 Available to backorder	Washer	£1.97 £1.64
21	MO112674550/0 Available to backorder	Screw	£1.55 £1.29
22	MO112523050/0 In stock	Washer	£1.55 £1.29
23	MO135064386/0 Available to backorder	Belt	£15.62 £13.02
24	MO122601914/0 In stock	Pulley	£21.54 £17.95
25	MO322322835/0 Available to backorder	Lever	£4.93 £4.11
27	MO112815206/0 Available to backorder	Screw From 01-9-2009	£1.55 £1.29
27	MO112815200/0 Available to backorder	Screw To 31-8-2009	£1.55 £1.29
30	MO112815240/0 Available to backorder	Screw	£2.06 £1.72
31	MO122671653/0 Available to backorder	Washer	£1.55 £1.29
32	MO122601915/0 In stock	Pulley	£21.40 £17.83
33	MO122671656/0 Available to backorder	Washer	£7.31 £6.09
34	MO112154510/0 In stock	Nut	£1.55 £1.29
35	MO381007189/0 Available to backorder	Speed Control Ass.Y	£39.42 £32.85
36	MO322399820/0 Available to backorder	Knob From 01-9-2009	£3.38 £2.82
36	MO322399809/0 Available to backorder	Knob To 31-8-2009	£1.55 £1.29
37	MO112728702/0 Available to backorder	Screw From 01-9-2009	£1.55 £1.29
37	MO112728300/0 Available to backorder	Screw To 31-8-2009	£1.55 £1.29
38	MO112728536/0 In stock	Screw	Was £1.34 £1.12 Special Price £0.89 £0.74
