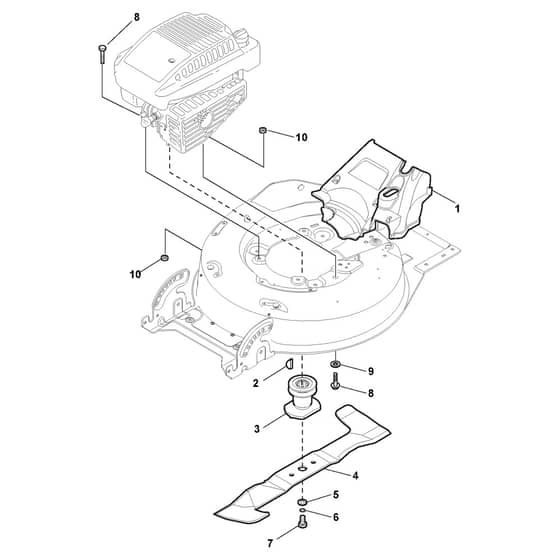

TURBO EXCEL 50 S - 2010 - 290502041/S10 - Stiga Rotary Mower Blade Diagram

Name: TURBO EXCEL 50 S - 2010 - 290502041/S10 - Stiga Rotary Mower Blade Diagram
SKU: turbo_excel_50_s_290502041_s10_blade-group
Price: 1.29 GBP
Availability: InStock

Part No. turbo_excel_50_s_290502041_s10_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TURBO EXCEL 50 S - 2010 - 290502041/S10 - Stiga Rotary Mower Blade Diagram

Description

Stiga TURBO EXCEL 50 S Parts Diagram

Product Name - TURBO EXCEL 50 S

Model Year - 2010

Model Type - DML 504 TR

Art.N - 290502041/S10

Engine Model -

	Part No.	Details
2	MO112139150/0 In stock	Feather. Crankshaft Ø 25	£2.11 £1.76
2	MO112139100/0 In stock	Key	£1.55 £1.29
3	MO122465607/4 In stock	Hub With Pulley. Crankshaft Ø 22.2 From 01-9-2010	£9.30 £7.75
4	MO181004450/0 Available to backorder	Mulching Blade	£28.27 £23.56
5	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
6	MO112523080/0 In stock	Washer	£1.55 £1.29
7	MO112735698/0 In stock	Screw	£1.84 £1.53
8	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
9	MO112521350/0 In stock	Washer	£1.55 £1.29
10	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
