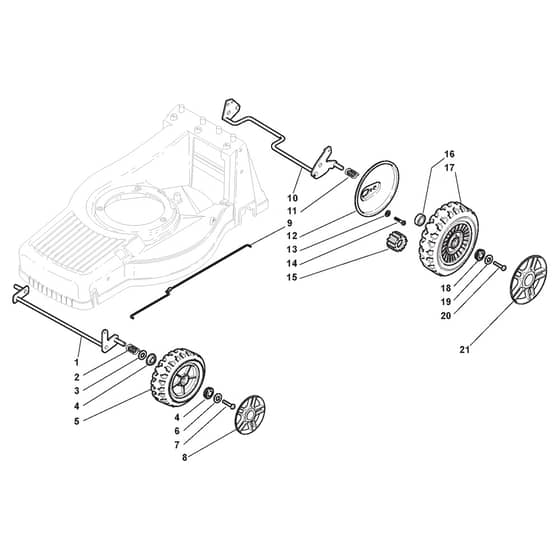

TURBO 55 SE RENTAL B - 2010 - 292552521/S10 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Name: TURBO 55 SE RENTAL B - 2010 - 292552521/S10 - Stiga Rotary Mower Wheels and Hub Caps Diagram
SKU: turbo_55_se_rental_b_292552521_s10_wheels_and_hub_caps-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TURBO 55 SE RENTAL B - 2010 - 292552521/S10 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Description

Stiga TURBO 55 SE RENTAL B Parts Diagram

Product Name - TURBO 55 SE RENTAL B

Model Year - 2010

Model Type - TU 554 TR/E

Art.N - 292552521/S10

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO122430210/0 Available to backorder	Spring	£1.69 £1.41
3	MO112521370/0 Available to backorder	Washer	£1.55 £1.29
4	MO122122206/0 In stock	Bearing	£1.82 £1.52
5	MO381007351/0 In stock	Wheel Ø 170	£13.66 £11.38
8	MO322110729/0 In stock	Hub Cap Grey Grey	£2.68 £2.23
10	MO381002823/0 Available to backorder	Rear Wheel Axle	£48.37 £40.31
11	MO122430215/0 Available to backorder	Spring	£3.24 £2.70
15	MO122570125/0 In stock	Pinion	£14.10 £11.75
16	MO119216038/0 Available to backorder	Bearing Only for 554 models	£5.92 £4.93
17	MO381007362/0 Available to backorder	Wheel	£46.46 £38.72
18	MO122122201/0 Available to backorder	Bearing	£2.26 £1.88
19	MO112521460/0 Available to backorder	Washer	£1.40 £1.17
20	MO112735662/1 In stock	Screw From 01-9-2009	£2.40 £2.00
21	MO381004363/0 Available to backorder	Hub Cap Grey Grey	£6.47 £5.39
