TURBO 55 S B - 2012 - 292552021/S11 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Description

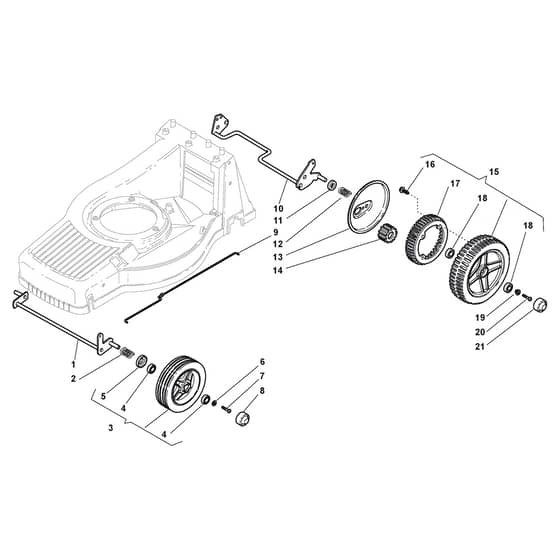

Stiga TURBO 55 S B Parts Diagram

Product Name - TURBO 55 S B

Model Year - 2012

Model Type - TU 554 TR

Art.N - 292552021/S11

Engine Model - 750 series DOV Ready Start

	Part No.	Details
1	MO381002829/0 Available to backorder	Front Wheel Axle	£43.50 £36.25
2	MO122430210/0 Available to backorder	Spring	£1.70 £1.42
4	MO119216039/0 Available to backorder	Bearing	£4.08 £3.40
5	MO322160522/0 Available to backorder	Dust Cover	£3.52 £2.93
6	MO112521460/0 Available to backorder	Washer	£1.40 £1.17
8	MO322110379/0 In stock	Hub Cap Black	Was £11.69 £9.74 Special Price £4.27 £3.56
11	MO122170810/0 Available to backorder	Spacer	£3.66 £3.05
12	MO122430215/0 Available to backorder	Spring	£3.25 £2.71
13	MO322600127/0 Available to backorder	Protection. Wheel	£10.99 £9.16
14	MO122570126/0 In stock	Pinion	£15.07 £12.56
15	MO381007368/0 Available to backorder	Wheel	£102.06 £85.05
16	MO112728210/0 In stock	Screw	£1.39 £1.16
17	MO322120108/0 Available to backorder	Wheels Crown	£11.70 £9.75
18	MO119216038/0 Available to backorder	Bearing	£5.92 £4.93
19	MO122671655/0 Available to backorder	Washer	£6.77 £5.64
20	MO112735592/0 Available to backorder	Screw	£1.97 £1.64
21	MO322110380/0 Available to backorder	Hub Cap Black	£2.82 £2.35
