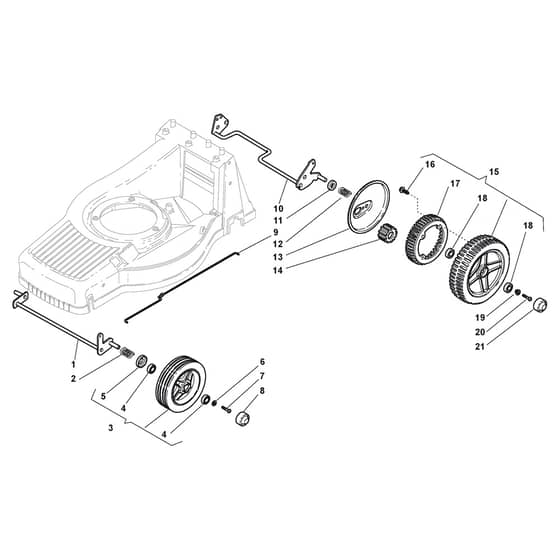

TURBO 55 4S RENTAL - 2009-2010 - 292554041/ST9 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Name: TURBO 55 4S RENTAL - 2009-2010 - 292554041/ST9 - Stiga Rotary Mower Wheels and Hub Caps Diagram
SKU: turbo_55_4s_rental_292554041_st9_wheels_and_hub_caps-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TURBO 55 4S RENTAL - 2009-2010 - 292554041/ST9 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Description

Stiga TURBO 55 4S RENTAL Parts Diagram

Product Name - TURBO 55 4S RENTAL

Model Year - 2009-2010

Model Type - TU 554 TR 4S

Art.N - 292554041/ST9

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381002829/0 Available to backorder	Front Wheel Axle	£43.51 £36.26
2	MO122430210/0 Available to backorder	Spring	£1.69 £1.41
4	MO119216039/0 Available to backorder	Bearing	£4.08 £3.40
5	MO322160522/0 Available to backorder	Dust Cover	£3.52 £2.93
6	MO112521460/0 Available to backorder	Washer	£1.40 £1.17
8	MO322110379/0 In stock	Hub Cap Black	Was £9.23 £7.69 Special Price £4.27 £3.56
10	MO381002823/0 Available to backorder	Rear Wheel Axle	£48.37 £40.31
11	MO122170810/0 Available to backorder	Spacer	£3.67 £3.06
12	MO122430215/0 Available to backorder	Spring	£3.24 £2.70
13	MO322600127/0 Available to backorder	Protection. Wheel	£10.99 £9.16
14	MO122570126/0 Available to backorder	Pinion	£15.07 £12.56
15	MO381007368/0 Available to backorder	Wheel	£102.06 £85.05
16	MO112728210/0 Available to backorder	Screw	£1.40 £1.17
17	MO322120108/0 Available to backorder	Wheels Crown	£11.69 £9.74
18	MO119216038/0 Available to backorder	Bearing	£5.92 £4.93
19	MO122671655/0 Available to backorder	Washer	£6.76 £5.63
20	MO112735592/0 Available to backorder	Screw	£1.97 £1.64
21	MO322110380/0 Available to backorder	Hub Cap Black	£2.81 £2.34
