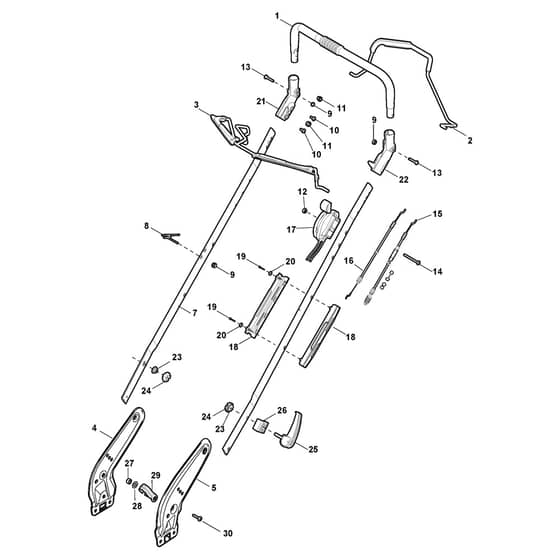

TURBO 53 S BW PLUS H - 2011 - 299536031/ESF - Stiga Rotary Mower Handle Upper Part Diagram

Name: TURBO 53 S BW PLUS H - 2011 - 299536031/ESF - Stiga Rotary Mower Handle Upper Part Diagram
SKU: turbo_53_s_bw_plus_h_299536031_esf_handle_upper_part-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TURBO 53 S BW PLUS H - 2011 - 299536031/ESF - Stiga Rotary Mower Handle Upper Part Diagram

Description

Stiga TURBO 53 S BW PLUS H Parts Diagram

Product Name - TURBO 53 S BW PLUS H

Model Year - 2011

Model Type - NTL 534 W TR

Art.N - 299536031/ESF

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381006670/2 Available to backorder	Handle Tube	£27.88 £23.23
2	MO381003349/0 Available to backorder	Lever. Driving	£47.87 £39.89
3	MO381003344/1 Available to backorder	Lever. Engine Brake Red From 01-9-2016	£49.26 £41.05
4	MO381005149/0 Available to backorder	Right Bracket Black	£15.20 £12.67
5	MO381005151/0 Available to backorder	Left Bracket Black	£15.20 £12.67
8	MO122430309/0 Available to backorder	Spring	£3.10 £2.58
9	MO112154330/0 In stock	Nut	£1.55 £1.29
10	MO112735662/1 In stock	Screw	£2.40 £2.00
11	MO322041967/1 Available to backorder	Bushing From 01-9-2011	£1.55 £1.29
12	MO112154510/0 In stock	Nut	£1.55 £1.29
13	MO112728721/0 Available to backorder	Screw	£1.82 £1.52
14	MO112727786/0 Available to backorder	Screw	£1.97 £1.64
15	MO381030075/0 Available to backorder	Cable Rear Drive To 31-8-2012	£22.52 £18.77
15	MO381030093/1 Available to backorder	Cable Rear Drive From 01-9-2013	£19.57 £16.31
16	MO181030074/0 Available to backorder	Cable. Thread Engine Brake	£22.94 £19.12
17	MO181005512/0 In stock	Throttle Cable HON .GGP Engine	£22.93 £19.11
18	MO322806644/0 Available to backorder	Protection	£2.40 £2.00
19	MO112727812/0 Available to backorder	Screw	£1.55 £1.29
20	MO112523000/1 Available to backorder	Washer	£1.55 £1.29
21	MO322488301/0 Available to backorder	Joint Sleeve Grey Right	£24.22 £20.18
22	MO322488303/0 Available to backorder	Joining Sleeve Grey Left	£24.22 £20.18
23	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
24	MO381004310/0 In stock	Black Knob	£1.97 £1.64
25	MO381103359/1 In stock	Locking Handle Lever	£5.06 £4.22
26	MO322680017/0 Available to backorder	Washer	£1.97 £1.64
27	MO112155000/0 In stock	Nut	£1.55 £1.29
28	MO125038002/1 In stock	Bushing	£1.55 £1.29
29	MO322192156/0 Available to backorder	Clip	£1.97 £1.64
30	MO112760605/0 In stock	Screw	£3.38 £2.82
