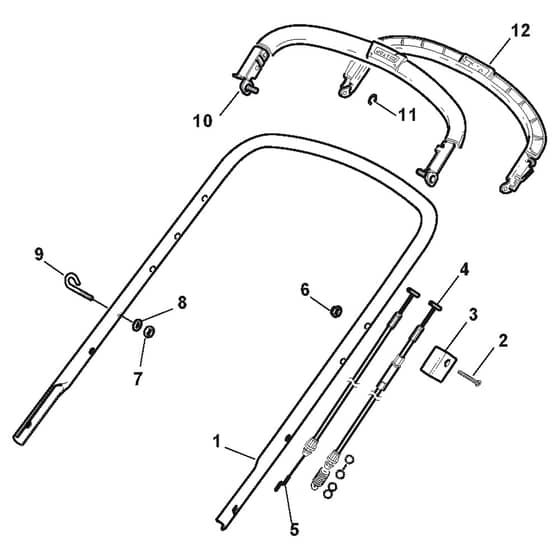

TURBO 53 S BW PLUS B - 2010-2011 - 299536021/S10 - Stiga Rotary Mower Handle Upper Part Diagram

Name: TURBO 53 S BW PLUS B - 2010-2011 - 299536021/S10 - Stiga Rotary Mower Handle Upper Part Diagram
SKU: turbo_53_s_bw_plus_b_299536021_s10_handle_upper_part-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TURBO 53 S BW PLUS B - 2010-2011 - 299536021/S10 - Stiga Rotary Mower Handle Upper Part Diagram

Description

Stiga TURBO 53 S BW PLUS B Parts Diagram

Product Name - TURBO 53 S BW PLUS B

Model Year - 2010-2011

Model Type - NTL 534 W TR

Art.N - 299536021/S10

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381006803/0 Available to backorder	Upper Handle	£39.42 £32.85
2	MO112727787/0 Available to backorder	Screw	£1.82 £1.52
3	MO322551685/0 In stock	Cable Holder	£7.52 £6.27
4	MO381030055/0 Available to backorder	Cable Rear Drive From 01-9-2012 To 31-8-2013	£21.67 £18.06
5	MO181030056/1 In stock	Cable. Thread Engine Brake HON . B&S . GGP Engine	£11.96 £9.97
7	MO112154510/0 In stock	Nut	£1.55 £1.29
8	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
9	MO122430313/0 In stock	Guide Spring	£3.94 £3.28
10	MO381003330/0 Available to backorder	Lever. Engine Brake	£66.16 £55.13
11	MO112000930/0 In stock	Circlip Ø6	£1.55 £1.29
12	MO381003297/1 Available to backorder	Driving Lever	£22.10 £18.42
