TURBO 53 S BW PLUS B - 2010-2011 - 299536021/S10 - Stiga Rotary Mower Grass Catcher Diagram

Name: TURBO 53 S BW PLUS B - 2010-2011 - 299536021/S10 - Stiga Rotary Mower Grass Catcher Diagram
SKU: turbo_53_s_bw_plus_b_299536021_s10_grass_catcher-group
Price: 1.29 GBP
Availability: InStock

Part No. turbo_53_s_bw_plus_b_299536021_s10_grass_catcher-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TURBO 53 S BW PLUS B - 2010-2011 - 299536021/S10 - Stiga Rotary Mower Grass Catcher Diagram

Description

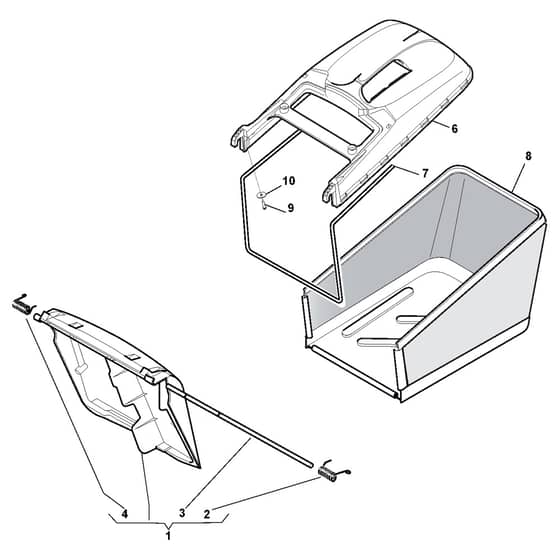

Stiga TURBO 53 S BW PLUS B Parts Diagram

Product Name - TURBO 53 S BW PLUS B

Model Year - 2010-2011

Model Type - NTL 534 W TR

Art.N - 299536021/S10

Engine Model -

	Part No.	Details
1	MO381008081/2 Available to backorder	Stone Guard. Black	£22.38 £18.65
2	MO122450466/0 Available to backorder	Left Spring	£1.84 £1.53
3	MO122517906/1 Available to backorder	Fulcrum Pin	£14.66 £12.22
4	MO122450465/0 Available to backorder	Right Spring	£1.84 £1.53
6	MO381486013/0 Available to backorder	Grass-Box. Upper Part	£22.30 £18.58
7	MO122608525/2 In stock	Lower Stiffening	£13.12 £10.93
8	MO181002211/0 Available to backorder	Box. Fabric	£53.50 £44.58
9	MO112728722/0 Available to backorder	Screw	£1.55 £1.29
10	MO112523050/0 In stock	Washer	£1.57 £1.31
