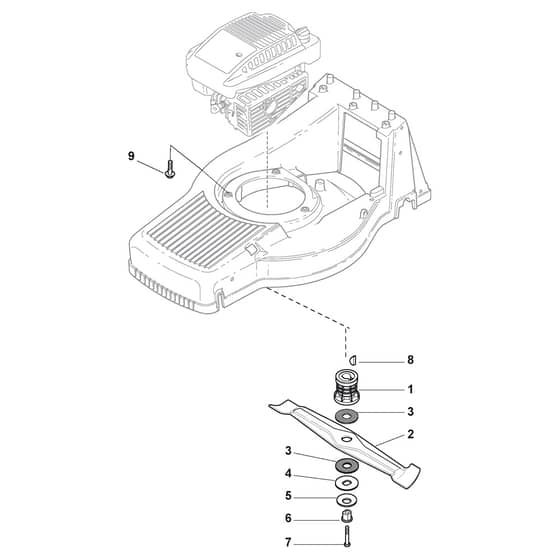

TURBO 50 S H - 2012 - 292502031/S11 - Stiga Rotary Mower Blade Diagram

Name: TURBO 50 S H - 2012 - 292502031/S11 - Stiga Rotary Mower Blade Diagram
SKU: turbo_50_s_h_292502031_s11_blade-group
Price: 1.77 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TURBO 50 S H - 2012 - 292502031/S11 - Stiga Rotary Mower Blade Diagram

Description

Stiga TURBO 50 S H Parts Diagram

Product Name - TURBO 50 S H

Model Year - 2012

Model Type - TU 504 TR

Art.N - 292502031/S11

Engine Model - GCV 160 OHC Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122465631/0 Available to backorder	Hub With Pulley. Crankshaft Ø 25	£12.26 £10.22
2	MO181004135/0 Available to backorder	Blade Winged	£24.44 £20.37
3	MO322672111/0 In stock	Washer	£3.94 £3.28
4	MO322672105/0 Available to backorder	Washer	£3.56 £2.97
5	MO112508120/0 Available to backorder	Cup Spring	£3.52 £2.93
6	MO122041940/0 Available to backorder	Bushing	£6.62 £5.52
7	MO112736850/0 Available to backorder	Screw	£2.40 £2.00
7	MO112736825/0 Available to backorder	Screw AVS	£2.95 £2.46
8	MO112139150/0 In stock	Feather. Crankshaft Ø 25	£2.12 £1.77
9	MO112735108/1 Available to backorder	Telf-Form Screw 3.8" X 1¼" Unc	£2.12 £1.77
