TURBO 48 SE B - 2016 - 299486528/S16 - Stiga Rotary Mower Transmission Diagram

Description

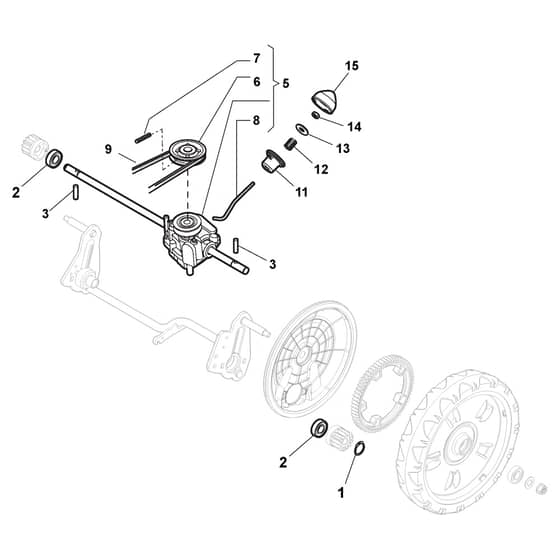

Stiga TURBO 48 SE B Parts Diagram

Product Name - TURBO 48 SE B

Model Year - 2016

Model Type - NTL 484 W TR/E

Art.N - 299486528/S16

Engine Model - 675 IS series InStart

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112608600/0 In stock	Seeger	£1.55 £1.29
2	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
3	MO122753000/0 In stock	Pin	£1.55 £1.29
5	MO181003092/0 In stock	Gear Box To 31-8-2012	£69.71 £58.09
5	MO181003076/1 Available to backorder	Gear Box From 01-9-2012	£121.07 £100.89
6	MO122601909/0 In stock	Pulley From 01-9-2013	£5.64 £4.70
7	MO112645700/0 Available to backorder	Elastic Pin	£1.55 £1.29
8	MO122033283/0 In stock	Adjustment Rod	£4.66 £3.88
9	MO135063800/0 In stock	Trapezoidal Belt	£9.17 £7.64
11	MO122041957/1 Available to backorder	Bushing	£1.55 £1.29
12	MO122450063/0 Available to backorder	Spring	£1.55 £1.29
13	MO322680009/0 Available to backorder	Washer	£1.82 £1.52
14	MO112154510/0 In stock	Nut	£1.55 £1.29
15	MO122110230/0 In stock	Hub Cover	£1.55 £1.29
