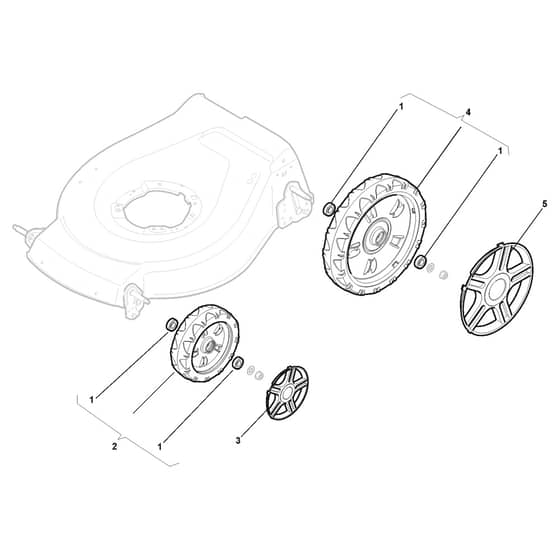

TURBO 48 S B - 2011-2013 - 299486021/S12 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Name: TURBO 48 S B - 2011-2013 - 299486021/S12 - Stiga Rotary Mower Wheels and Hub Caps Diagram
SKU: turbo_48_s_b_299486021_s12_wheels_and_hub_caps-group
Price: 1.91 GBP
Availability: InStock

Part No. turbo_48_s_b_299486021_s12_wheels_and_hub_caps-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TURBO 48 S B - 2011-2013 - 299486021/S12 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Description

Stiga TURBO 48 S B Parts Diagram

Product Name - TURBO 48 S B

Model Year - 2011-2013

Model Type - NTL 484 W TR

Art.N - 299486021/S12

Engine Model -

	Part No.	Details
1	MO119216035/0 In stock	Bearing	£3.52 £2.93
2	MO381007416/3 Available to backorder	Wheel Ø 200 From S.N SK5169580 To S.N 19JA2WBH009252	£17.60 £14.67
3	MO322110492/0 Available to backorder	Hub Cap Grey Grey	£2.29 £1.91
4	MO381007472/2 In stock	Wheel Ø 280 From S.N SK5174228 To S.N 19KA2WBH006301	£37.94 £31.62
5	MO322110644/0 Available to backorder	Beta Hub Cap D.300 [Grey]	£3.38 £2.82
