TURBO 48 PLUS B - 2011 - 299481021/S11 - Stiga Rotary Mower Blade Diagram

Description

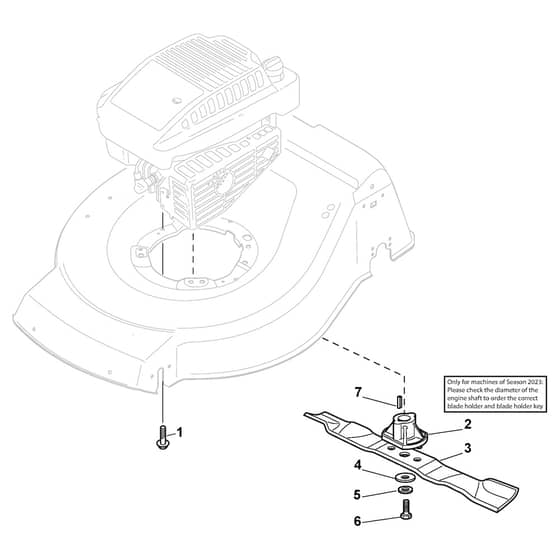

Stiga TURBO 48 PLUS B Parts Diagram

Product Name - TURBO 45 PLUS B

Model Year - 2011

Model Type - NTL 484

Art.N - 299481021/S11

Engine Model - 550 series XMH

	Part No.	Details
1	MO112735108/1 In stock	Screw	£2.11 £1.76
2	MO122463012/4 In stock	Hub. Crankshaft Ø 22.2 From 01-1-2019	£8.00 £6.67
3	MO181004458/0 In stock	Mulching Blade	£12.48 £10.40
4	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
5	MO112523080/0 In stock	Washer	£1.55 £1.29
6	MO112735698/0 In stock	Screw	£1.84 £1.53
7	MO112139100/0 In stock	Woodruff Key 4 X 6.5 D.16 Uni6606 C40	£1.55 £1.29
