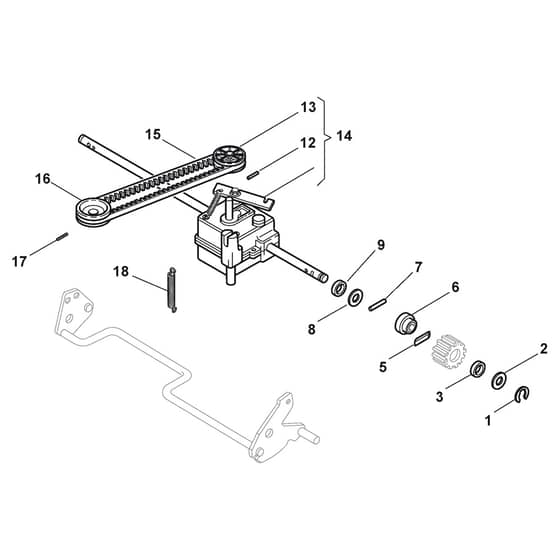

TURBO 45 S B - 2011-2012 - 292452028/S11 - Stiga Rotary Mower Transmission Diagram

Description

Stiga TURBO 45 S B Parts Diagram

Product Name - TURBO 45 S B

Model Year - 2011-2012

Model Type - TU 454 TR

Art.N - 292452028/S11

Engine Model -

	Part No.	Details
1	MO122450063/0 Available to backorder	Spring To 31-8-2006	£1.55 £1.29
1	MO112000957/0 Available to backorder	Circlip Ø10	£1.63 £1.36
3	MO322160520/0 In stock	Dust Cover Disc	£1.55 £1.29
5	MO122076645/0 In stock	Key	£1.70 £1.42
6	MO322170630/1 Available to backorder	Spacer From 01-9-2013	£4.93 £4.11
7	MO122753002/0 Available to backorder	Pin	£1.97 £1.64
8	MO112520032/0 Available to backorder	Washer	£1.63 £1.36
9	MO119035152/0 Available to backorder	Grommet	£4.78 £3.98
12	MO112620310/0 Available to backorder	Pin	£1.97 £1.64
13	MO122601913/0 Available to backorder	Pulley	£16.88 £14.07
14	MO181003084/0 Available to backorder	Gear Box F.R.	£175.97 £146.64
15	MO135063173/0 Available to backorder	Belt	£9.30 £7.75
16	MO122601918/0 Available to backorder	Pulley. Crankshaft Ø 22.2	£25.01 £20.84
17	MO112714312/0 Available to backorder	Grub Screw	£1.55 £1.29
18	MO122450434/0 In stock	Tension Spring	£6.62 £5.52
