Stihl TSA350.0 - Cast Arm With Guard - Parts Diagram

Name: Stihl TSA350.0 - Cast Arm With Guard - Parts Diagram
SKU: tsa350_0_cast_arm_with_guard-group
Price: 0.76 GBP
Availability: InStock

Part No. tsa350_0_cast_arm_with_guard-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl TSA350.0 - Cast Arm With Guard - Parts Diagram

Description

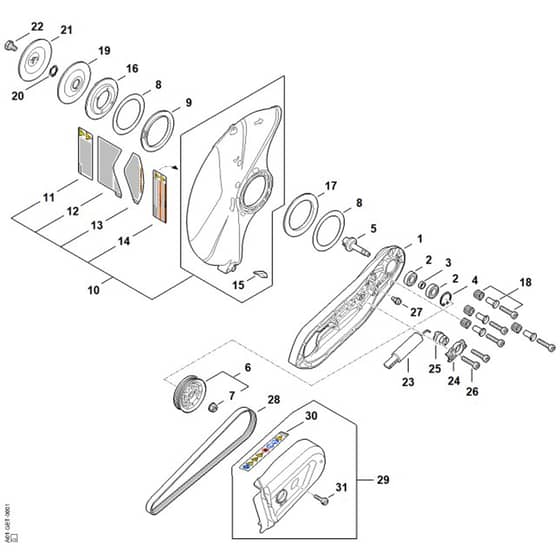

Stihl TSA350.0 - Cast Arm With Guard - Parts Diagram

	Part No.	Details
1	STTA01 701 0200 Available to backorder	Connecting piece Ø 350mm	£158.76 £132.30
2	ST9503 003 6440 In stock	Grooved ball bearing 6201-2RS	£8.26 £6.88
3	ST0000 961 1206 In stock	Ring	£2.84 £2.37
4	ST9456 621 3600 In stock	Circlips 32x12	£1.31 £1.09
5	ST4224 704 0502 Available to backorder	Shaft	£70.44 £58.70
6	STTA01 760 8500 Available to backorder	Belt pulley (Contains 7)	£56.65 £47.21
7	ST9220 263 1295 Available to backorder	Hexagon nut (DIN EN14218)-M10x1LH-8	£1.03 £0.86
8	ST4201 706 9202 In stock	Washer	Was £2.08 £1.73 Special Price £1.19 £0.99
9	ST4224 706 8801 In stock	Rubber ring	Was £9.14 £7.62 Special Price £3.80 £3.17
10	STTA01 700 8102 Available to backorder	Deflector Ø 350 mm / 14" (Contains 11 + 15)	£221.28 £184.40
10	STTA01 700 8104 Available to backorder	Deflector Ø 350 mm / 14" (Contains 14 + 15)	£227.76 £189.80
11	STTA01 967 7300 Available to backorder	Warning pictogram	£3.43 £2.86
12	STTA01 967 7505 Available to backorder	Warning note	£3.26 £2.72
13	STTA01 967 7503 Available to backorder	Warning note	£3.26 £2.72
14	STTA01 967 7301 Available to backorder	Warning pictogram	£3.43 £2.86
15	ST4224 706 0400 Available to backorder	Stiffener	£3.64 £3.03
16	ST4205 706 2903 In stock	Flange	£15.66 £13.05
17	ST4224 706 8802 In stock	Rubber ring	Was £9.58 £7.98 Special Price £5.74 £4.78
18	ST4238 710 9500 In stock	Adjusting screw	Was £3.52 £2.93 Special Price £1.19 £0.99
19	ST4205 708 3000 Available to backorder	Thrust washer Ø 118 mm	£22.99 £19.16
19	ST4201 708 3004 In stock	Thrust washer Ø 103 mm	£21.06 £17.55
20	ST9450 721 2150 In stock	E-clip 20x1.2	£0.91 £0.76
21	ST4205 708 3010 Available to backorder	Thrust washer Ø 118 mm	£23.21 £19.34
21	ST4201 708 3014 In stock	Thrust washer Ø 103 mm	£22.40 £18.67
22	ST4201 708 8402 In stock	Hexagon head screw M10x18	Was £2.54 £2.12 Special Price £1.57 £1.31
23	ST4238 660 0400 In stock	Belt tensioner	£22.52 £18.77
24	STTA02 664 4200 Available to backorder	Cover	£4.00 £3.33
25	STTA02 664 2100 Available to backorder	Clamping lever	£5.46 £4.55
26	ST9075 478 4159 In stock	Pan head self-tapping screw IS-D5x24	£0.95 £0.79
27	ST4224 691 0100 Available to backorder	Stop pin	£4.09 £3.41
28	ST9490 000 7917 Available to backorder	Multi-rib belt 6PJ 746 LB	£47.96 £39.97
29	STTA01 700 8111 Available to backorder	Deflector (Contains 30 + 31)	£37.46 £31.22
30	STTA02 967 7200 Available to backorder	Warning pictogram	£2.15 £1.79
31	ST9022 319 1027 In stock	Screw IS-M5x21	£0.95 £0.79
