Stihl TSA300.0 - Electric Motor, Electronic Module, Battery Compartment - Parts Diagram

Description

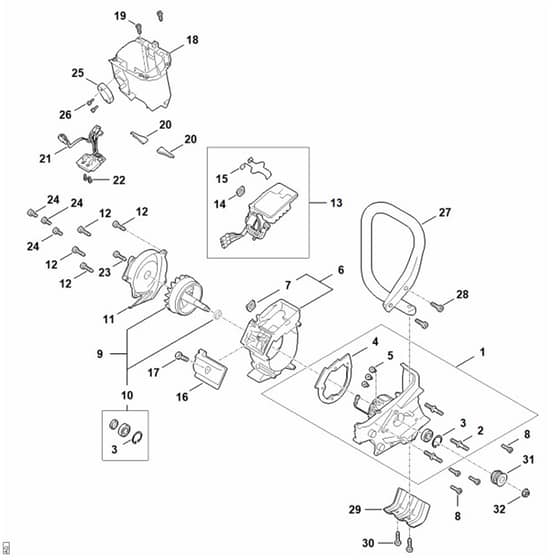

Stihl TSA300.0 - Electric Motor, Electronic Module, Battery Compartment - Parts Diagram

	Part No.	Details
1	STTA02 600 1601 Available to backorder	Mounting plate (Contains 2 - 5)	£174.96 £145.80
2	ST0000 953 6610 In stock	Stud	£3.65 £3.04
3	ST9456 621 3600 In stock	Circlips 32x12	£1.31 £1.09
4	STTA02 029 0500 Available to backorder	Gasket	£2.74 £2.28
5	ST9022 307 0610 Available to backorder	Spline screw IS-M4x6-4.8	£0.68 £0.57
6	STTA02 600 4403 Available to backorder	Spiral housing (Contains 7)	£40.51 £33.76
7	STMA02 432 9300 Available to backorder	Grommet	£2.28 £1.90
8	ST9074 477 4132 In stock	Pan head self-tapping screw IS-P5x18	£0.95 £0.79
9	STTA02 600 1100 Available to backorder	Rotor (Contains 45933)	£174.96 £145.80
10	STTA02 007 1000 Available to backorder	Ball bearing kit (Contains 3)	£24.48 £20.40
11	STTA02 600 4400 Available to backorder	Spiral housing	£14.44 £12.03
13	STTA02 430 1402 Available to backorder	Electronic module (Contains 14 + 15)	£268.32 £223.60
15	STMA02 405 7600 Available to backorder	Spring	£1.72 £1.43
16	STTA02 141 3400 Available to backorder	Connector	£6.60 £5.50
18	STTA02 403 3200 Available to backorder	Battery compartment	£36.86 £30.72
19	ST9075 478 4114 Available to backorder	Pan head self-tapping screw IS D5x16	£0.91 £0.76
20	STMA01 791 3100 Available to backorder	Spring	£2.40 £2.00
21	STMA02 440 3005 Available to backorder	Wiring harness	£30.49 £25.41
22	ST9022 313 0651 Available to backorder	Spline screw IS-M4x10	£0.79 £0.66
24	ST9022 341 0960 In stock	Spline screw IS-M5x12	£0.83 £0.69
25	STMA02 084 1600 Available to backorder	Cover	£2.96 £2.47
26	ST9074 477 2980 Available to backorder	Pan head self-tapping screw IS-P4x12	£0.79 £0.66
27	STTA02 791 1700 Available to backorder	Handlebar	£37.22 £31.02
28	ST9075 478 4136 In stock	Pan head self-tapping screw IS-D5x20	£0.95 £0.79
29	STTA02 692 7600 Available to backorder	Guide plate	£24.25 £20.21
31	STTA02 764 8505 Available to backorder	Belt pulley	£35.96 £29.97
32	ST9220 263 1295 Available to backorder	Hexagon nut (DIN EN14218)-M10x1LH-8	£1.03 £0.86
