Stihl TSA230.1 - Cast Arm With Guard - Parts Diagram

Name: Stihl TSA230.1 - Cast Arm With Guard - Parts Diagram
SKU: tsa230_1_cast_arm_with_guard-group
Price: 0.4 GBP
Availability: InStock

Part No. tsa230_1_cast_arm_with_guard-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

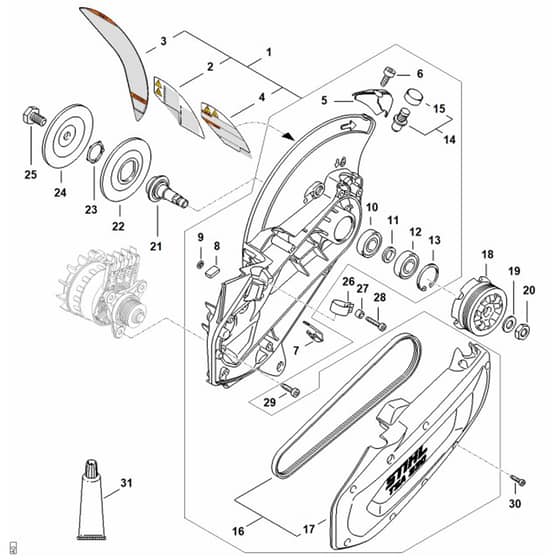

Stihl TSA230.1 - Cast Arm With Guard - Parts Diagram

Description

Stihl TSA230.1 - Cast Arm With Guard - Parts Diagram

	Part No.	Details
1	ST4864 690 0211 Available to backorder	Cast arm with guard (Contains 2 + 5 - 17)	£170.52 £142.10
2	ST4864 967 3503 Available to backorder	Instruction label	£2.15 £1.79
5	ST4864 717 3500 Available to backorder	Protective strip	£2.83 £2.36
6	ST9075 478 2995 In stock	Pan head self-tapping screw IS-D4x12	£0.83 £0.69
7	ST4238 706 0400 Available to backorder	Stiffener	£3.52 £2.93
8	ST4864 404 4000 Available to backorder	Magnet	£4.32 £3.60
9	ST9417 003 7512 In stock	Push nut 4.0x9.6x1.8	£1.19 £0.99
10	ST9503 003 5289 Available to backorder	Grooved ball bearing DIN625-6002-2RS	£15.12 £12.60
11	ST4864 961 1200 Available to backorder	Ring	£6.14 £5.12
12	ST9503 003 6444 Available to backorder	Grooved ball bearing DIN625--6201-2RS	£17.75 £14.79
13	ST9456 621 3600 In stock	Circlips 32x12	£1.31 £1.09
14	ST4864 690 0501 Available to backorder	Spindle lock (Contains 15)	£32.54 £27.12
15	ST4864 691 0500 Available to backorder	Push button	£3.77 £3.14
16	ST4864 690 0901 Available to backorder	Multi-rib belt (Contains 17)	£33.80 £28.17
17	ST4864 700 8900 Available to backorder	Cover	£24.80 £20.67
18	ST4864 764 8504 Available to backorder	Belt pulley DIN7867 3PJ Ø61.7	£36.41 £30.34
19	ST9291 021 0200 In stock	Washer 10.5	£0.48 £0.40
20	ST9211 260 1340 In stock	Hexagon nut M10x1	£0.83 £0.69
21	ST4864 704 0500 Available to backorder	Shaft	£63.24 £52.70
22	ST4864 708 3000 Available to backorder	Thrust washer	£16.84 £14.03
23	ST9450 721 2442 Available to backorder	E-clip 22x1.2	£0.91 £0.76
24	ST4864 708 3001 Available to backorder	Thrust washer	£18.34 £15.28
25	ST4201 708 8402 In stock	Hexagon head screw M10x18	Was £2.54 £2.12 Special Price £1.57 £1.31
26	ST4864 791 9400 Available to backorder	Hose clamp	£2.83 £2.36
27	ST4864 641 4900 Available to backorder	Sleeve	£1.94 £1.62
28	ST9075 478 4175 In stock	Pan head self-tapping screw IS-D5x28	£1.08 £0.90
29	ST9075 478 4114 Available to backorder	Pan head self-tapping screw IS D5x16	£0.91 £0.76
30	ST9075 478 3016 Available to backorder	Pan head self-tapping screw IS-D4x16	£0.79 £0.66
