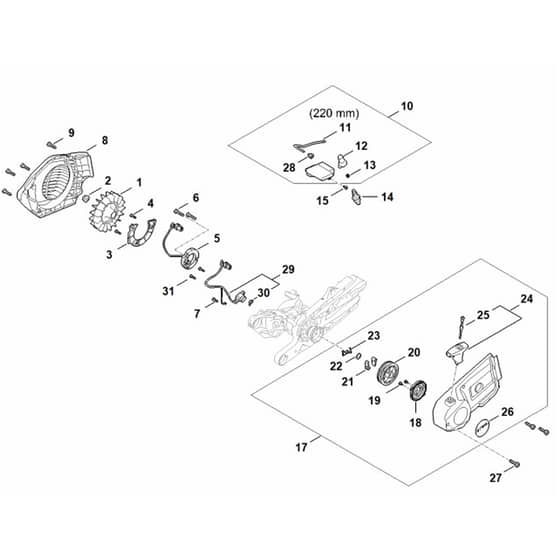

Stihl TS910i - Ignition System, Rewind Starter - Parts Diagram

Description

Stihl TS910i - Ignition System, Rewind Starter - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	STTB01 400 1215 Available to backorder	Flywheel	£174.90 £145.75
2	ST0000 955 0802 In stock	Collar nut M8x1	£1.32 £1.10
3	STTB01 020 1700 Available to backorder	Cover	£5.62 £4.68
4	ST9022 341 0662 Available to backorder	Spline screw IS-M4x12-10.9	£0.76 £0.63
5	STTB01 400 4000 Available to backorder	Generator	£71.50 £59.58
6	ST1147 404 7800 Available to backorder	Screw M5x23	£2.32 £1.93
8	STTB01 080 3100 Available to backorder	Fan cover	£78.10 £65.08
9	ST9022 371 1020 In stock	Pan head screw IS M5x20	£0.88 £0.73
10	STTB01 400 4705 Available to backorder	Control unit (Contains 11 - 13 + 28)	£192.50 £160.42
11	ST0000 930 2251 In stock	Ignition lead 10 m	£54.34 £45.28
12	ST0000 998 0618 Available to backorder	Torsion spring	£1.32 £1.10
13	ST1147 405 1000 Available to backorder	Spark plug boot	£6.70 £5.58
14	3945 In stock	Spark plug NGK CMR6H	£3.76 £3.13
15	ST9074 478 2970 In stock	Pan head self-tapping screw IS-P4x10	£0.76 £0.63
17	STTB01 190 0306 Available to backorder	Starter cover with rewind starter (Contains 18 - 26)	£134.20 £111.83
18	ST4224 190 0600 In stock	Rewind spring	£10.24 £8.53
19	ST9104 003 0410 In stock	Self-tapping screw P3x6	£0.66 £0.55
20	ST4224 190 1001 Available to backorder	Rope rotor	£10.66 £8.88
21	ST4221 195 7200 Available to backorder	Pawl	£2.20 £1.83
22	ST1119 162 8925 In stock	Washer Ø 12 mm	Was £1.10 £0.92 Special Price £0.77 £0.64
23	ST4224 195 3501 Available to backorder	Spring	£1.32 £1.10
24	ST0000 190 3417 In stock	Starter grip ElastoStart Ø 4 mm (Contains 25)	£29.14 £24.28
25	ST0000 190 2902 Available to backorder	Starter rope Ø 4x970 mm	£13.42 £11.18
26	STTB01 967 1505 Available to backorder	Model plate TS 910i	£4.52 £3.77
28	ST0000 989 1002 In stock	Grommet	£2.54 £2.12
29	STTB01 400 5800 Available to backorder	Sensor (Contains 30)	£75.34 £62.78
30	ST1147 139 0101 Available to backorder	Gasket	£1.32 £1.10
