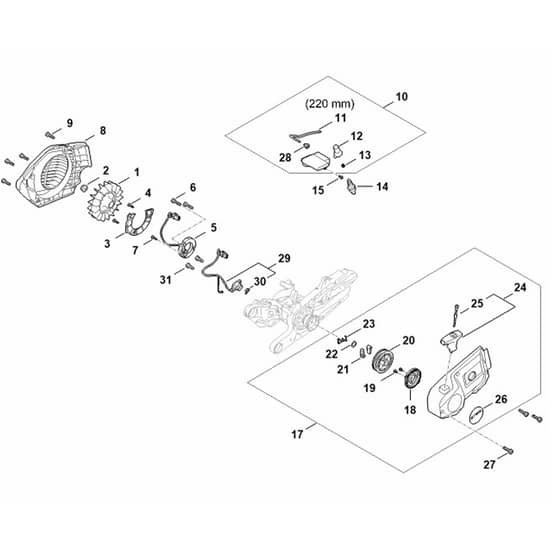

Stihl TS710i - Ignition System, Rewind Starter - Parts Diagram

Description

Stihl TS710i - Ignition System, Rewind Starter - Parts Diagram

	Part No.	Details
2	ST0000 955 0802 In stock	Collar nut M8x1	£1.39 £1.16
3	STTB01 020 1700 Available to backorder	Cover	£5.81 £4.84
4	ST9022 341 0662 Available to backorder	Spline screw IS-M4x12-10.9	£0.79 £0.66
5	STTB01 400 4000 Available to backorder	Generator	£71.52 £59.60
6	ST1147 404 7800 Available to backorder	Screw M5x23	£2.40 £2.00
8	STTB01 080 3100 Available to backorder	Fan cover	£78.12 £65.10
9	ST9022 371 1020 In stock	Pan head screw IS M5x20	£0.95 £0.79
11	ST0000 930 2251 In stock	Ignition lead 10 m	Was £54.34 £45.28 Special Price £41.40 £34.50
12	ST0000 998 0618 Available to backorder	Torsion spring	£1.37 £1.14
13	ST1147 405 1000 Available to backorder	Spark plug boot	£6.94 £5.78
14	3945 In stock	Spark plug NGK CMR6H	£4.38 £3.65
15	ST9074 478 2970 In stock	Pan head self-tapping screw IS-P4x10	£0.79 £0.66
18	ST4224 190 0600 In stock	Rewind spring	£10.98 £9.15
19	ST9104 003 0410 In stock	Self-tapping screw P3x6	£0.72 £0.60
20	ST4224 190 1001 Available to backorder	Rope rotor	£11.03 £9.19
21	ST4221 195 7200 Available to backorder	Pawl	£2.28 £1.90
22	ST1119 162 8925 Available to backorder	Washer Ø 12 mm	£1.14 £0.95
23	ST4224 195 3501 Available to backorder	Spring	£1.37 £1.14
24	ST0000 190 3417 In stock	Starter grip ElastoStart Ø 4 mm (Contains 25)	£31.22 £26.02
25	ST0000 190 2902 Available to backorder	Starter rope Ø 4x970 mm	£13.88 £11.57
28	ST0000 989 1002 In stock	Grommet	£2.72 £2.27
29	STTB01 400 5800 Available to backorder	Sensor (Contains 30)	£75.36 £62.80
30	ST1147 139 0101 Available to backorder	Gasket	£1.37 £1.14
31	ST9022 313 0658 Available to backorder	Spline screw IS-M4x12	£0.91 £0.76
