Stihl TS50 - Crankcase, Cylinder, Muffler - Parts Diagram

Description

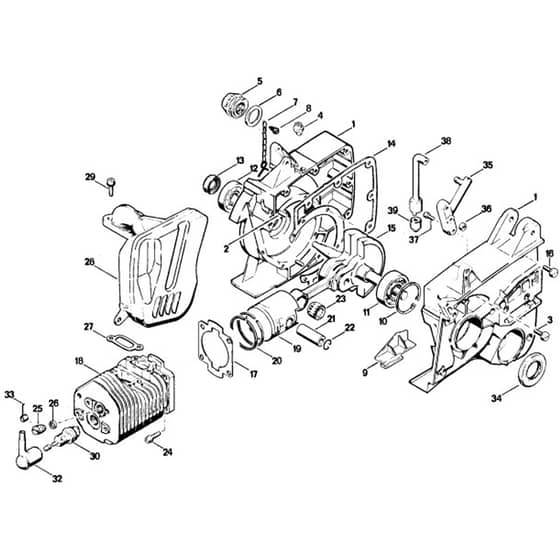

Stihl TS50 - Crankcase, Cylinder, Muffler - Parts Diagram

	Part No.	Details
1	ST1111 020 2102 Available to backorder	Crankcase (Contains 2 - 8+ 10 - 12)	£169.68 £141.40
2	ST9371 470 3120 Available to backorder	Cylindrical pin 6x20	£0.68 £0.57
3	ST9048 216 1010 Available to backorder	Pan head screw M5x18	£0.91 £0.76
6	ST0000 992 6302 Available to backorder	Sealing ring	£0.79 £0.66
7	ST1117 350 0905 Available to backorder	Filler cap retainer	£2.28 £1.90
8	ST9099 021 2360 In stock	Self-tapping screw 3.5x9.5	£0.79 £0.66
9	ST1111 084 6600 Available to backorder	Insert	£3.23 £2.69
10	ST9456 621 4910 Available to backorder	Circlip 47x1.75	£1.72 £1.43
11	ST9503 003 0540 Available to backorder	Grooved ball bearing 6204	£23.89 £19.91
12	ST9503 003 0440 In stock	Grooved ball bearing 6203	£20.16 £16.80
13	ST9640 003 1570 In stock	Oil seal 15x24x7	£6.96 £5.80
14	ST1111 029 0501 Available to backorder	Gasket	£2.40 £2.00
15	ST1111 030 0402 Available to backorder	Crankshaft	£334.42 £278.68
17	ST1111 029 2300 Available to backorder	Cylinder gasket	£3.19 £2.66
19	ST1111 030 2000 Available to backorder	Piston Ø 52 mm (Contains 20 - 22)	£144.84 £120.70
20	ST1115 034 3001 In stock	Piston ring Ø 52x1.5 mm	Was £11.74 £9.78 Special Price £3.59 £2.99
23	ST9512 003 3440 In stock	Needle cage 13 x17x17.5	£9.67 £8.06
24	ST9036 341 1020 Available to backorder	Socket head screw M5x20	£1.03 £0.86
25	ST1111 025 2200 Available to backorder	Plug	£3.41 £2.84
26	ST9636 003 0420 Available to backorder	Sealing ring 6.5x9.5	£0.58 £0.48
27	ST1111 149 0600 Available to backorder	Muffler gasket	£1.72 £1.43
28	ST1111 140 0613 Available to backorder	Muffler	£75.36 £62.80
30	2134 In stock	Spark plug NGK BPMR7A	£2.80 £2.33
32	ST1106 405 1000 Available to backorder	Spark plug boot	£6.60 £5.50
33	ST0000 998 0603 Available to backorder	Torsion spring	£1.37 £1.14
36	ST1108 649 5000 Available to backorder	Sealing ring 5x8.3x4.3	£0.58 £0.48
37	ST9048 319 0660 Available to backorder	Pan head screw M4x12	£0.79 £0.66
38	ST1110 647 9400 Available to backorder	Hose	£6.83 £5.69
39	ST1106 640 3801 In stock	Pickup body	£1.66 £1.38
