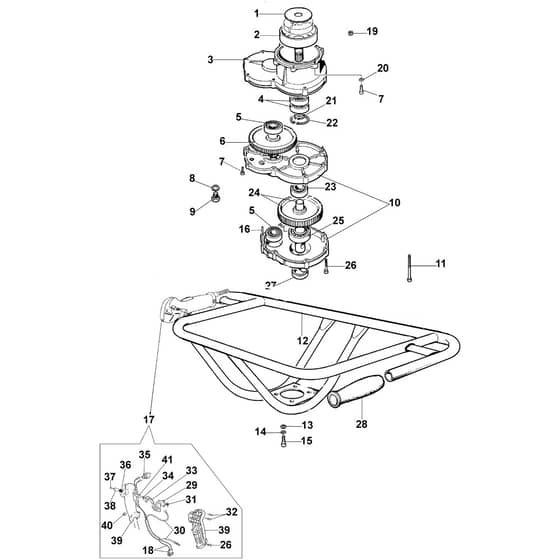

TR 1551 (EURO 5) - - Efco Earth Auger Reduction assy Diagram

Name: TR 1551 (EURO 5) - - Efco Earth Auger Reduction assy Diagram
SKU: tr_1551_euro_5_reduction_assy-group
Price: 0.9 GBP
Availability: InStock

Part No. tr_1551_euro_5_reduction_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TR 1551 (EURO 5) - - Efco Earth Auger Reduction assy Diagram

Description

Efco TR 1551 (EURO 5) Parts Diagram

Model Year -

	Part No.	Details
1	EF375100012A Available to backorder	Washer	£5.64 £4.70
3	EF4190033 Available to backorder	Gear Case	£98.88 £82.40
4	EF3035042R Available to backorder	Bearing	£11.16 £9.30
5	EF094000006R Available to backorder	Bearing	£17.40 £14.50
6	EF375100075A Available to backorder	Sprocket	£129.36 £107.80
7	EF3801013R Available to backorder	Screw	£1.61 £1.34
8	EF3078012 Available to backorder	Washer	£1.08 £0.90
9	EF3906103 Available to backorder	Screw	£3.01 £2.51
10	EF4190036 Available to backorder	Cover	£114.12 £95.10
11	EF3801030 Available to backorder	Screw	£1.08 £0.90
12	EF375200152R Available to backorder	Handle	£160.32 £133.60
13	EF3916006R Available to backorder	Washer	£1.08 £0.90
14	EF3819010R Available to backorder	Washer	£1.08 £0.90
15	EF3801021 Available to backorder	Screw	£1.08 £0.90
16	EF094600042 Available to backorder	Plug	£1.08 £0.90
17	EF4190071R In stock	Handle Kit	£67.74 £56.45
20	EF3819006R Available to backorder	Washer	£1.58 £1.32
21	EF3024015R Available to backorder	Ring	£1.08 £0.90
22	EF3025022R Available to backorder	Seeger	£1.08 £0.90
23	EF3035015R Available to backorder	Bearing	£17.04 £14.20
24	EF375100076B Available to backorder	Sprocket	£129.36 £107.80
25	EF302000029 Available to backorder	Bearing	£20.52 £17.10
26	EF3801016R Available to backorder	Screw	£1.08 £0.90
27	EF3050020 Available to backorder	Seal Ring	£12.60 £10.50
28	EF4095032A Available to backorder	Knob	£5.64 £4.70
29	EF4174245CR Available to backorder	Throttle Lever	£9.00 £7.50
30	EF4190016 Available to backorder	Throttle Cable	£15.96 £13.30
31	EF4138361R Available to backorder	Spring	£1.08 £0.90
32	EF3960029 Available to backorder	Screw	£1.08 £0.90
33	EF4174246AR Available to backorder	Lever	£3.84 £3.20
34	EF4138360R In stock	Spring	£1.13 £0.94
35	EF2317021R In stock	Switch	£9.32 £7.77
36	EF4100098B Available to backorder	Spring	£1.08 £0.90
37	EF3960021 Available to backorder	Screw	£1.08 £0.90
38	EF4138359R Available to backorder	Button	£1.08 £0.90
39	EF61040131R Available to backorder	Handle	£11.40 £9.50
40	EF3914003R Available to backorder	Nut	£1.15 £0.96
41	EF4138358R Available to backorder	Button	£2.00 £1.67
