Toro Z Master 152cm - 74056TE (400000000 - 408907972) Throttle, Choke Cables and Guard

Name: Toro Z Master 152cm - 74056TE (400000000 - 408907972) Throttle, Choke Cables and Guard
SKU: z_master_152cm_74056te_44897972_throttle_choke_cablesguard-group
Price: 0.24 GBP
Availability: InStock

Part No. z_master_152cm_74056te_44897972_throttle_choke_cablesguard-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Z Master 152cm - 74056TE (400000000 - 408907972) Throttle, Choke Cables and Guard

Description

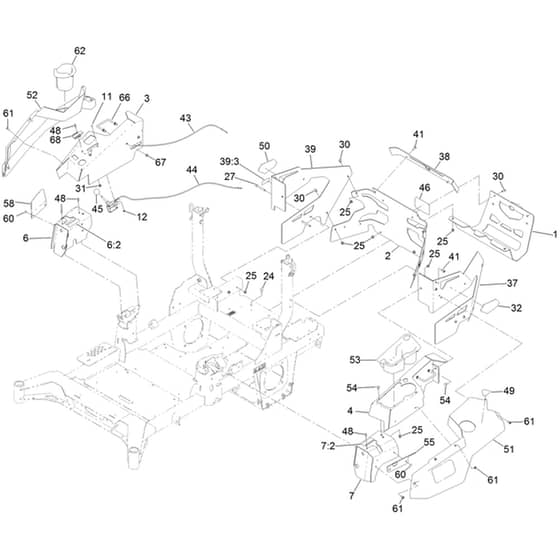

Toro Z Master 152cm - 74056TE (400000000 - 408907972) Throttle, Choke Cables and Guard Parts Diagram

	Part No.	Details
1	HA139-6719-03 Available to backorder	Muffler Guard	£219.96 £183.30
2	HA144-2637 Available to backorder	Rear Guard Assembly With Decals	£369.12 £307.60
3	HA144-6551-01 Available to backorder	Right Hand Console (Red)	£130.32 £108.60
4	HA144-2638-01 Available to backorder	Obs Console-Lh	£106.32 £88.60
6	HA140-4867 Available to backorder	Right Hand Cover Assembly With Decal	£133.56 £111.30
7	HA140-4866 Available to backorder	Left Hand (Lh) Cover Assembly With Decal	£133.56 £111.30
7	HA99-8936 Available to backorder	[7.2] Decal - Motion Control	£25.99 £21.66
11	HA1-807513 Available to backorder	Carriage Bolt	£1.97 £1.64
12	HA3296-2 Available to backorder	Lock Nut	£2.34 £1.95
24	HA3230-22 Available to backorder	Carriage Screw	£2.46 £2.05
25	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
27	HA126-6267 Available to backorder	Screw-Tth	£3.20 £2.67
30	HA126-6268 Available to backorder	Screw-Tth	£1.72 £1.43
31	HA3220-3 In stock	Hj Nut	Was £0.48 £0.40 Special Price £0.29 £0.24
32	HA139-1149 Available to backorder	Left Hand (Lh) Decal - 4000 Series. Left Hand (Lh)	£11.14 £9.28
37	HA140-7952-01 Available to backorder	Left Hand (Lh) Rear Guard	£130.32 £108.60
38	HA140-1221-01 Available to backorder	Top Rear Guard	£41.59 £34.66
39	HA133-8062 Available to backorder	[39.3] Decal - Spark Arrestor	£4.14 £3.45
39	HA140-4865 Available to backorder	Right Hand Rear Guard Assembly	£173.76 £144.80
41	HA138-9753 Available to backorder	Screw	£0.48 £0.40
43	HA139-6735 Available to backorder	Choke Control Cable	£45.79 £38.16
44	HA139-6734 Available to backorder	Throttle Control Cable	£54.43 £45.36
45	HA1-603175 Available to backorder	Knob-Ball	£13.61 £11.34
46	HA105-8278 Available to backorder	Decal [Toro Logo]	£16.55 £13.79
48	HA87-6620 Available to backorder	Screw-Tph Thd Form[1.4-20 X 5.8. Bz]	£2.38 £1.98
49	HA126-9939 Available to backorder	Decal-Fill. Fuel	£4.57 £3.81
50	HA140-7987 Available to backorder	Right Hand Decal (4000 Series)	£11.14 £9.28
51	HA140-7979 Available to backorder	Left Hand (Lh) Side Pod	£59.89 £49.91
52	HA140-7980 Available to backorder	Right Hand Side Pod	£59.89 £49.91
53	HA140-7968 Available to backorder	Cup Holder	£24.74 £20.62
54	HA3230-18 In stock	Carriage Screw	£5.20 £4.33
55	HA140-7996-03 Available to backorder	Left Hand (Lh) Front Cover Plate	£9.64 £8.03
58	HA140-7998-03 Available to backorder	Right Hand Front Plate Cover	£9.26 £7.72
60	HA132-5064 Available to backorder	Pop Rivet	£0.72 £0.60
61	HA120-7950 Available to backorder	Screw	£2.21 £1.84
62	HA140-8019 Available to backorder	Right Hand Cupholder	£16.08 £13.40
66	HA144-2642 Available to backorder	Pod Support Rod	£8.03 £6.69
67	HA121-4600 Available to backorder	Nut Lock Ni Assembly With Yz	£1.34 £1.12
68	HA144-6550 Available to backorder	Throttle Stop Plate	£38.26 £31.88
