Toro Z Master 132cm - 72264TE (406427909 - 406429999) Fuel System and Throttle Control

Name: Toro Z Master 132cm - 72264TE (406427909 - 406429999) Fuel System and Throttle Control
SKU: z_master_132cm_72264te_464279946429999_fuel_systemthrottle_contr
Price: 0.4 GBP
Availability: InStock

Part No. z_master_132cm_72264te_464279946429999_fuel_systemthrottle_contr

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Z Master 132cm - 72264TE (406427909 - 406429999) Fuel System and Throttle Control

Description

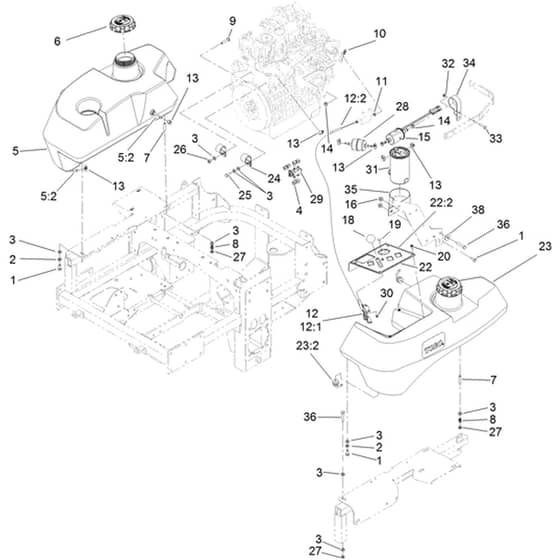

Toro Z Master 132cm - 72264TE (406427909 - 406429999) Fuel System and Throttle Control Parts Diagram

	Part No.	Details
1	HA322-3 Available to backorder	Hex Head (Hh) Screw	£0.97 £0.81
2	HA1-805005 Available to backorder	Lock Washer	£1.49 £1.24
3	HA3256-23 Available to backorder	Plain Washer	£0.48 £0.40
4	HA1-643293 Available to backorder	Clamp-Hose. Fuel	£6.31 £5.26
5	HA114-8221 Available to backorder	Right Hand Z593.Z595 Fuel Tank Assembly	£584.04 £486.70
6	HA114-5062 Available to backorder	Bio-Diesel Cap	£55.54 £46.28
7	HA1-633023 Available to backorder	Stud	£7.03 £5.86
8	HA1-633349 Available to backorder	Spring-Tank. Fuel	£6.04 £5.03
9	HA322-7 Available to backorder	Hex Head (Hh) Screw	£1.09 £0.91
10	HA108-5928 Available to backorder	Cable Stop Swivel	£18.56 £15.47
11	HA3220-1 Available to backorder	Jam Nut	£1.22 £1.02
12	HA108-5927 Available to backorder	Throttle Control Cable	£98.64 £82.20
12	HA108-6337 Available to backorder	[12.2] Cable-Throttle	£43.69 £36.41
13	HA2412-108 Available to backorder	Worm Clamp	£2.21 £1.84
14	HA1-643277 Available to backorder	Clamp-Hose. Fuel	£5.20 £4.33
15	HA144-4020 Available to backorder	Fuel Pump	£306.00 £255.00
16	HA3296-58 Available to backorder	Hex Washer Head (Hwh) Screw	£2.14 £1.78
18	HA1-603175 Available to backorder	Knob-Ball	£13.61 £11.34
19	HA1-807513 Available to backorder	Carriage Bolt	£1.97 £1.64
20	HA109-2661 Available to backorder	Phillips Pan Head (Pph) Screw	£1.09 £0.91
22	HA117-0913 Available to backorder	Control Panel Assembly	£278.52 £232.10
22	HA121-7562 Available to backorder	[22.2] Control Panel Decal	£62.76 £52.30
23	HA114-8222 Available to backorder	Left Hand (Lh) Fuel Tank Assembly	£584.04 £486.70
23	HA103-2615 Available to backorder	[23.2] Fitting-Fuel. Bulkhead	£48.25 £40.21
24	HA1-643312 Available to backorder	Clip-Loom	£6.31 £5.26
25	HA33114-020 Available to backorder	Hex Head (Hh) Screw	£0.48 £0.40
26	HA3296-29 Available to backorder	Lock Nut	£2.59 £2.16
27	HA3296-47 Available to backorder	Lock Nut	£4.45 £3.71
28	HA112-7836 Available to backorder	Fuel Filter	£22.99 £19.16
29	HA1-643234 Available to backorder	Valve-Fuel. Dual Flow	£224.76 £187.30
30	HA3296-2 Available to backorder	Lock Nut	£2.34 £1.95
31	HA112-9188 Available to backorder	Oil Filter	£102.24 £85.20
32	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.18 £0.98
33	HA321-8 Available to backorder	Screw-Hh[1.4-20 X 1.25. Gr5. Cz]	£0.58 £0.48
34	HA110-8817 Available to backorder	Bracket-Pump. Fuel	£37.63 £31.36
35	HA110-8807 Available to backorder	Bracket-Filter. Fuel	£134.52 £112.10
36	HA322-9 Available to backorder	Hex Head (Hh) Screw	£3.83 £3.19
38	HA3256-82 Available to backorder	Flat Washer	£0.80 £0.67
