Toro Z Master 132cm - 72264TE (406427909 - 406429999) Fork, Caster Wheel and Z Stand

Name: Toro Z Master 132cm - 72264TE (406427909 - 406429999) Fork, Caster Wheel and Z Stand
SKU: z_master_132cm_72264te_464279946429999_fork_caster_wheelz_stand-
Price: 0.4 GBP
Availability: InStock

Part No. z_master_132cm_72264te_464279946429999_fork_caster_wheelz_stand-

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Z Master 132cm - 72264TE (406427909 - 406429999) Fork, Caster Wheel and Z Stand

Description

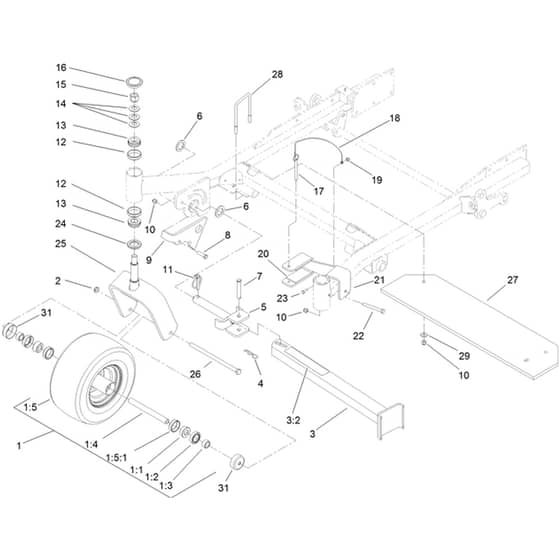

Toro Z Master 132cm - 72264TE (406427909 - 406429999) Fork, Caster Wheel and Z Stand Parts Diagram

	Part No.	Details
0	HA1-633584 Available to backorder	Cup Bearing	£9.89 £8.24
1	HA109-9127 Available to backorder	Wheel And Tire Asm	£378.80 £315.67
1	HA1-633585 Available to backorder	[1.1] Bearing-Cone. Taper	£25.99 £21.66
1	HA103-0063 Available to backorder	[1.2] Seal-Caster	£10.26 £8.55
1	HA103-3051 Available to backorder	[1.3] Spacer-Nut	£9.89 £8.24
1	HA126-5361 Available to backorder	[1.4] Axle Caster Assembly	£31.61 £26.34
2	HA3296-23 Available to backorder	Ni Lock Nut	£0.91 £0.76
3	HA107-1874 Available to backorder	Leg Assembly	£289.56 £241.30
3	HA106-7464 Available to backorder	[3.2] Decal-Z Stand	£11.14 £9.28
4	HA3290-355 Available to backorder	Hair Pin	£2.59 £2.16
5	HA100-9692-01 Available to backorder	Pivot Pan Assembly	£229.44 £191.20
6	HA3-6781 Available to backorder	Thrust Washer	£2.40 £2.00
7	HA283-55 Available to backorder	Clevis Pin	£13.78 £11.48
8	HA323-8 Available to backorder	Hex Head (Hh) Screw	£2.05 £1.71
9	HA136-1657-01 Available to backorder	Latch Plate - Red	£65.76 £54.80
10	HA3296-39 Available to backorder	Lock Nut	£2.83 £2.36
11	HA283-71 Available to backorder	Pin-Lynch	£4.68 £3.90
12	HA254-72 Available to backorder	1.98 Inch X 0.42 Inch Bearing Cup	£16.55 £13.79
13	HA254-94 Available to backorder	1.00 Inch X 0.58 Inch Cone Bearing	£14.52 £12.10
14	HA1-633508 In stock	Belleville Washer	£5.66 £4.72
15	HA3296-51 Available to backorder	Ni Lock Nut	£5.52 £4.60
16	HA103-4882 Available to backorder	Grease Cap	£9.02 £7.52
17	HA105-1647 Available to backorder	Cotterless Hitch Pin	£23.51 £19.59
18	HA100-9385 Available to backorder	Lanyard-Nylon	£9.20 £7.67
19	HA3296-42 Available to backorder	Ni Lock Nut	£0.48 £0.40
20	HA100-6547 Available to backorder	Rubber Cushion	£13.61 £11.34
21	HA100-6542-01 Available to backorder	Z Cradle Bracket - Red	£166.32 £138.60
22	HA323-20 Available to backorder	Hex Head (Hh) Screw	£2.20 £1.83
23	HA321-4 Available to backorder	Hex Head (Hh) Screw	£1.22 £1.02
24	HA116-5647 Available to backorder	Seal-Grease	£6.56 £5.47
25	HA116-6705-01 Available to backorder	Caster	£205.68 £171.40
26	HA325-24 Available to backorder	Hex Head (Hh) Screw	£23.29 £19.41
27	HA107-9874-01 Available to backorder	Weight	£784.28 £653.57
28	HA110-0817 Available to backorder	3 Inch U-Bolt	£27.20 £22.67
29	HA3256-4 In stock	Flat Washer	£0.48 £0.40
31	HA103-2768 Available to backorder	Guard-Seal	£4.20 £3.50
