Toro Z Master 122cm - 74048TE (420000000 - 999999999) Electrical

Description

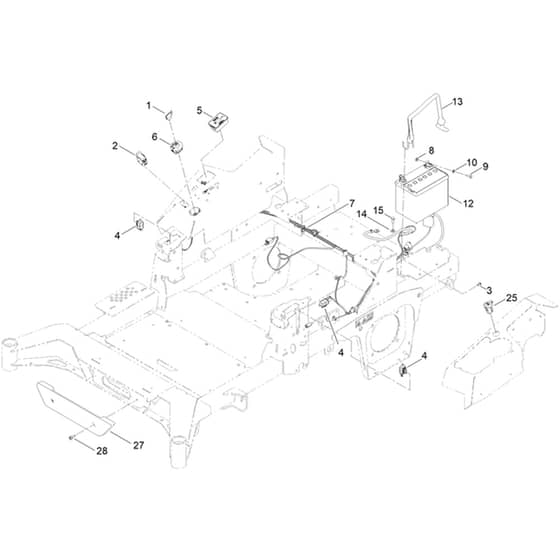

Toro Z Master 122cm - 74048TE (420000000 - 999999999) Electrical Parts Diagram

	Part No.	Details

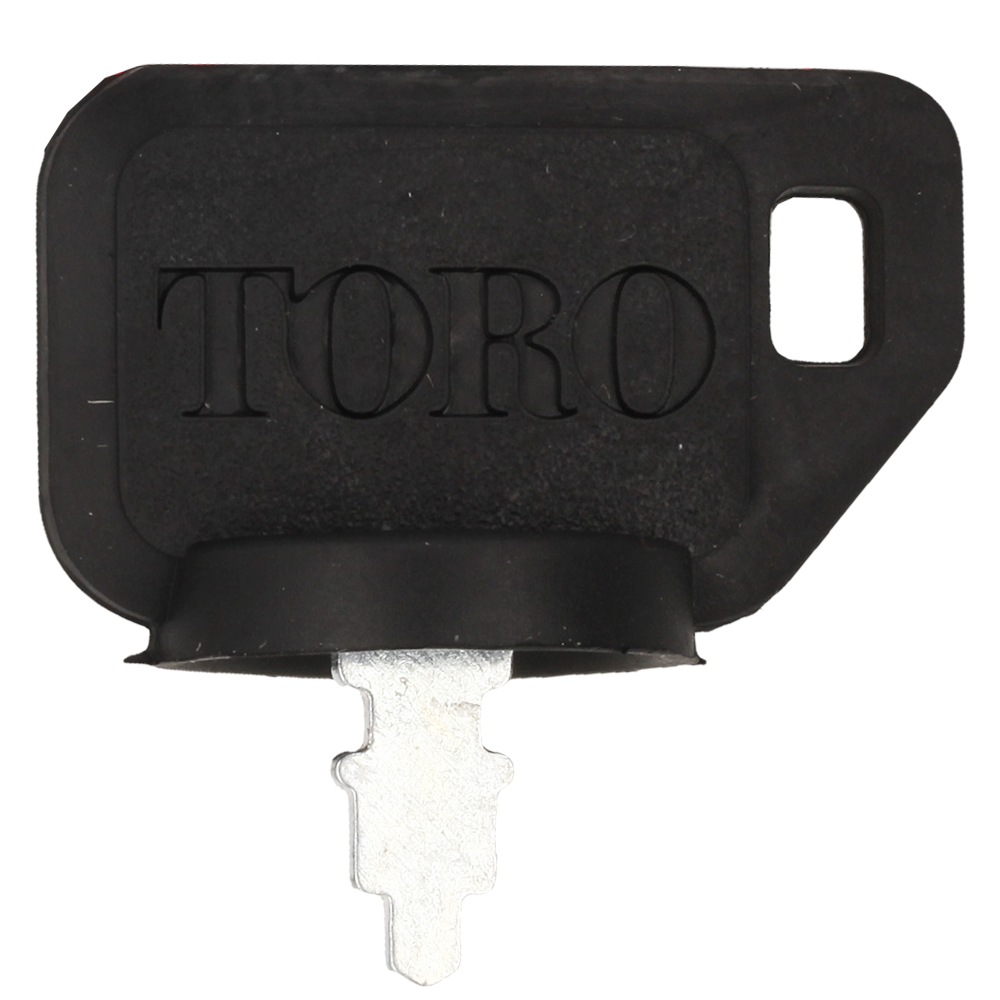

1	HA63-8360 Available to backorder	Ignition Key	£6.56 £5.47
2	HA139-6368 Available to backorder	Ignition Switch	£39.58 £32.98
3	HA137-4795 Available to backorder	Screw-Hwh [Taptite 1.4-20 X .38.Yz]	£0.35 £0.29
4	HA110-6765 Available to backorder	Ignition Switch	£16.08 £13.40
5	HA116-5609 Available to backorder	Module Asm	£227.88 £189.90

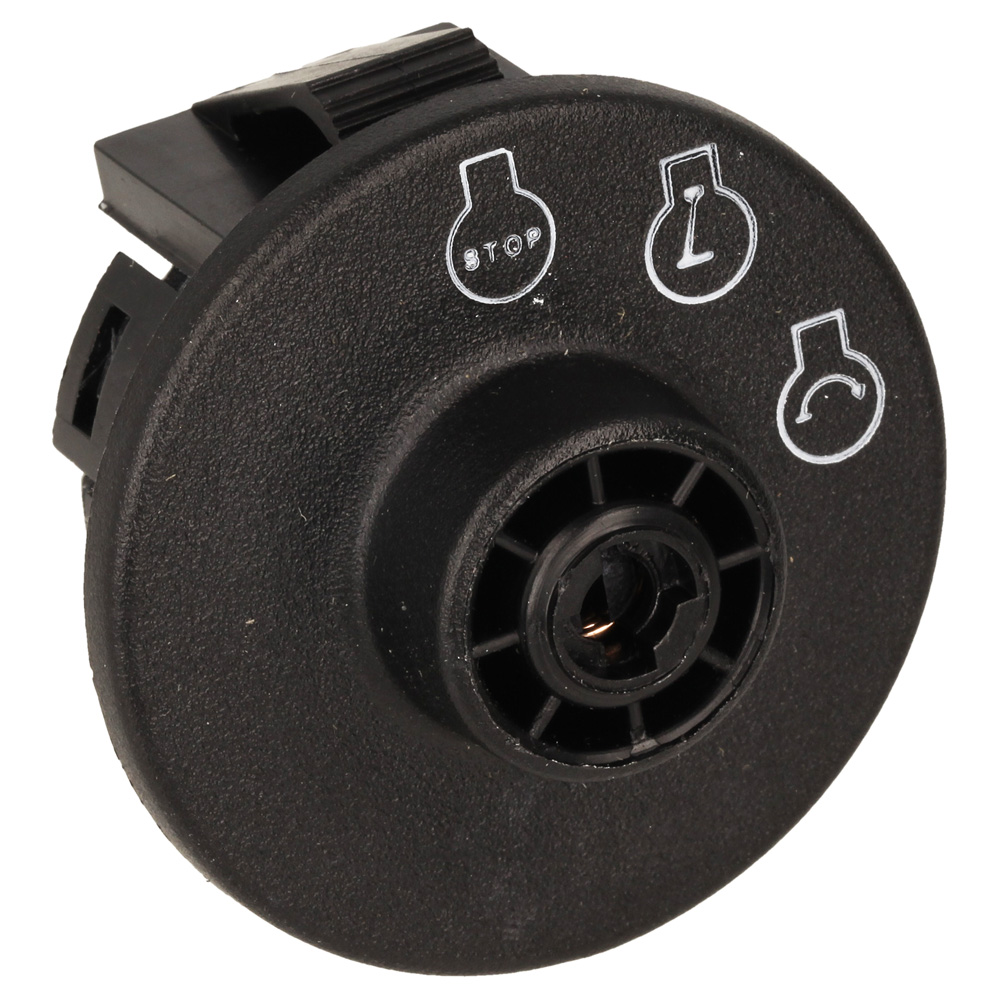

6	HA137-4100 Available to backorder	Z-Master Ignition Switch	£32.17 £26.81
7	HA147-2363 Available to backorder	Wire Harness For Z Master Mower	£377.28 £314.40

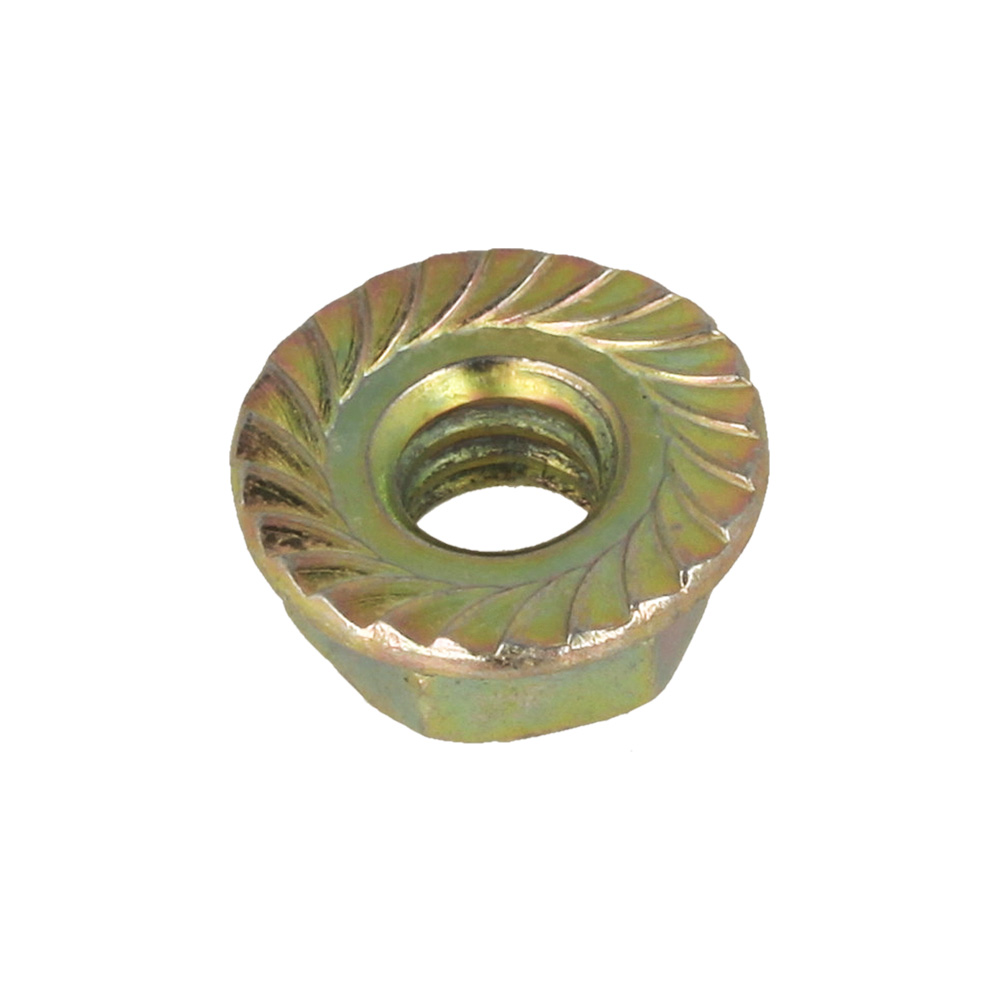

8	HA32128-33 Available to backorder	Hex Flange (Hf) Nut	£0.43 £0.36
9	HA321-4 Available to backorder	Hex Head (Hh) Screw	£1.22 £1.02
10	HA3256-22 Available to backorder	Flat Washer	£0.64 £0.53
13	HA142-8697 Available to backorder	Strap. Bungee	£13.31 £11.09
14	HA33094-00 Available to backorder	Plain Washer	£0.43 £0.36
15	HA33114-020 Available to backorder	Hex Head (Hh) Screw	£0.48 £0.40
25	HA140-7955 Available to backorder	Usb Power Port	£58.24 £48.53
27	HA147-7852 Available to backorder	Bumper-Front	£56.59 £47.16
28	HA135-2015 Available to backorder	Shoulder Screw	£3.83 £3.19
