Toro Z Master 122cm - 74048TE (420000000 - 999999999) Deck Lift

Description

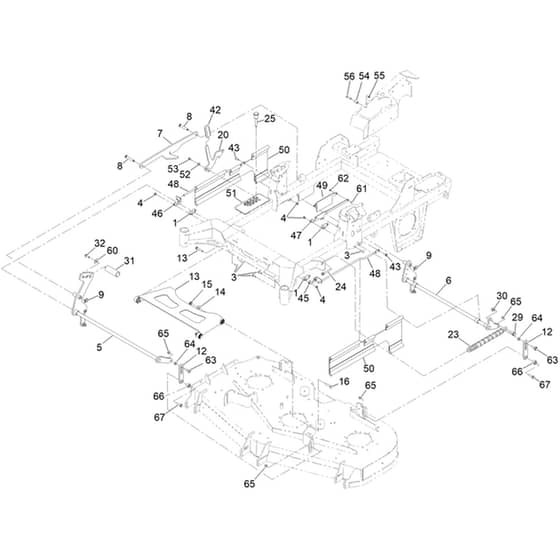

Toro Z Master 122cm - 74048TE (420000000 - 999999999) Deck Lift Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA139-5872 Available to backorder	Flange Bearing	£1.90 £1.58
3	HA3230-22 Available to backorder	Carriage Screw	£2.38 £1.98
4	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.64 £0.53
5	HA147-7389-03 Available to backorder	Shaft-Lift. Deck [Welded Asm. Mr Black]	£123.60 £103.00
6	HA140-4975-03 Available to backorder	Deck Lift Shaft Assembly	£123.60 £103.00
7	HA126-4639-03 Available to backorder	Lift Link	£99.74 £83.12
8	HA126-9181 Available to backorder	Clevis Pin	£9.08 £7.57
9	HA138-8491 Available to backorder	Pin Clip	£9.80 £8.17
12	HA161-9818-03 Available to backorder	Link-Lift. Deck [Black]	£6.44 £5.37
13	HA161-6805 Available to backorder	Asm-Deck Strut W.Bushings	£194.52 £162.10
14	HA1-373034 Available to backorder	Washer	£5.28 £4.40
15	HA109-6658 Available to backorder	Nut-Flange. Ni	£1.06 £0.88
16	HA323-17 Available to backorder	Carriage Screw	£3.40 £2.83
20	HA145-8475-03 Available to backorder	Transport Lock Plate	£43.44 £36.20
23	HA116-0886 Available to backorder	Extension Spring	£150.48 £125.40
24	HA92-7674 Available to backorder	Shoulder Bolt	£3.10 £2.58
25	HA126-5401 Available to backorder	Pin-Hoc	£25.12 £20.93
29	HA116-0780 Available to backorder	Hex Head Flange (Hhf) Shoulder Screw	£9.56 £7.97
30	HA99-5107 Available to backorder	Lock Nut	£2.94 £2.45
31	HA147-7949 Available to backorder	Pedal-Foot Lift [Mach]	£45.04 £37.53
32	HA3234-42 Available to backorder	Hex Head Flange (Hhf) Screw	£1.82 £1.52
42	HA132-4749 Available to backorder	Lever Grip	£5.84 £4.87
43	HA3234-47 Available to backorder	Hex Head Flange (Hhf) Screw	£2.14 £1.78
45	HA140-4918 Available to backorder	Left Hand Upper Front Mount Bracket	£38.60 £32.17
46	HA140-4919 Available to backorder	Right Hand Upper Front Mount Bracket	£38.60 £32.17
47	HA145-1275 Available to backorder	Upper Mounting Bracket	£17.70 £14.75
48	HA126-7760 Available to backorder	Rod-Support. Upper	£102.24 £85.20
49	HA145-1276-03 Available to backorder	Flag Bracket	£20.90 £17.42
50	HA126-8561 Available to backorder	Guard-Side	£227.76 £189.80
51	HA140-4927 Available to backorder	Decal - Height Of Cut (Hoc)	£56.24 £46.87
52	HA104-7658 Available to backorder	Spacer	£1.18 £0.98
53	HA9266934 Available to backorder	Screw	£9.44 £7.87
54	HA114-2754 Available to backorder	Spacer	£13.16 £10.97
55	HA3296-47 Available to backorder	Lock Nut	£4.30 £3.58
56	HA126-7439 Available to backorder	Screw-Torx	£2.14 £1.78
60	HA2844 Available to backorder	Washer	£4.50 £3.75
61	HA3229-11 Available to backorder	Carriage Screw	£1.18 £0.98
62	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.14 £0.95
63	HA130-0742 Available to backorder	Shoulder Bolt	£2.14 £1.78
64	HA43-0940 Available to backorder	Spacer [3.8 X 7.8 X 10 Ga Stl. Cz]	£2.08 £1.73
65	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
66	HA161-9819 Available to backorder	Bushing-Deck Lift	£2.26 £1.88
67	HA3234-18 Available to backorder	Hex Head Flange (Hhf) Screw	£1.46 £1.22
