Toro TimeCutter 127cm - 74696 (420000000 - 999999999) Seat

Name: Toro TimeCutter 127cm - 74696 (420000000 - 999999999) Seat
SKU: timecutter_127cm_74696_42999999999_seat-group
Price: 0.4 GBP
Availability: InStock

Part No. timecutter_127cm_74696_42999999999_seat-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro TimeCutter 127cm - 74696 (420000000 - 999999999) Seat

Description

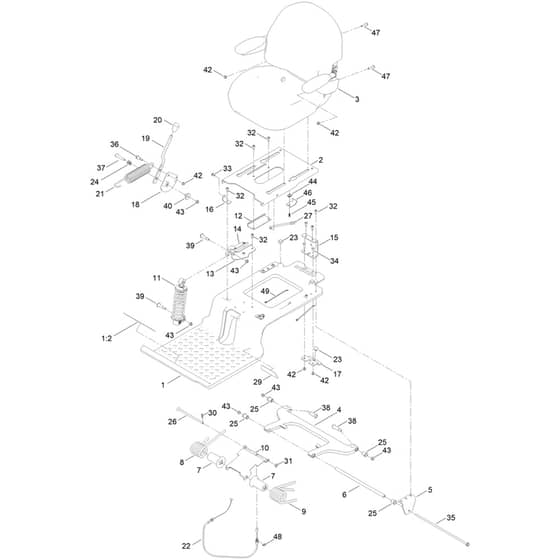

Toro TimeCutter 127cm - 74696 (420000000 - 999999999) Seat Parts Diagram

	Part No.	Details
1	HA140-5046 Available to backorder	Subframe Assembly	£325.51 £271.26
1	HA132-0869 Available to backorder	[1.2] Danger Decal	£12.35 £10.29
2	HA138-7540-03 Available to backorder	Seat Pan	£72.96 £60.80
3	HA140-5044 Available to backorder	Seat Asm [C1110. Color. Slide. Service]	£582.70 £485.58
4	HA138-2563 Available to backorder	Swing Arm	£133.56 £111.30
5	HA138-7517 Available to backorder	Swing Arm Mount Bracket	£14.83 £12.36
6	HA138-7549 Available to backorder	Spacer Tube	£28.45 £23.71
7	HA138-9776 Available to backorder	Spring Retainer	£3.71 £3.09
8	HA137-7018 Available to backorder	Right Hand Torsion Spring	£35.88 £29.90
9	HA137-1983 Available to backorder	Left Hand Torsion Spring	£37.12 £30.93
10	HA138-7566-03 Available to backorder	Adjuster Plate	£24.74 £20.62
11	HA139-2427 Available to backorder	Shock And Spring Assembly	£149.52 £124.60
12	HA131-4008-03 Available to backorder	Seat Latch Bracket - Black	£6.94 £5.78
13	HA133-9318-03 Available to backorder	Left Hand Upper Shock Mount Bracket	£18.56 £15.47
14	HA133-9319-03 Available to backorder	Right Hand Shock Mount Upper Bracket	£18.56 £15.47
15	HA138-9788 Available to backorder	Cable Bracket	£14.83 £12.36
16	HA138-7522 Available to backorder	Seat Bracket	£3.71 £3.09
17	HA139-2361-03 Available to backorder	Bracket Assembly	£8.40 £7.00
18	HA138-9814 Available to backorder	Cam Pulley	£35.88 £29.90
19	HA138-9822 Available to backorder	Adjustment Lever	£14.83 £12.36
20	HA140-5176 Available to backorder	Mr Knob	£12.35 £10.29
21	HA138-9848 Available to backorder	Extension Spring	£61.86 £51.55
22	HA138-9812 Available to backorder	Myride Adjustment Cable	£47.00 £39.17
23	HA135-0505 Available to backorder	Bumper-Seat	£1.46 £1.22
24	HA139-5858 Available to backorder	Compression Spring	£1.97 £1.64
25	HA138-2573 Available to backorder	Flange Bushing	£3.20 £2.67
26	HA138-9813 Available to backorder	Adjustment Rod	£6.04 £5.03
27	HA138-2596 Available to backorder	Seat Prop Rod	£12.35 £10.29
29	HA140-0357 Available to backorder	Decal - Myride	£3.20 £2.67
30	HA137-3083 Available to backorder	Hair Pin	£0.48 £0.40
31	HA115-1166 Available to backorder	Flat Washer	£7.14 £5.95
32	HA138-9753 Available to backorder	Screw	£0.48 £0.40
33	HA120-7950 Available to backorder	Screw	£2.21 £1.84
34	HA139-1716 Available to backorder	Hex Head (Hh) Screw	£0.72 £0.60
49	HA614249 Available to backorder	Cable Tie	£0.97 £0.81
