Toro TimeCutter 127cm - 74696 (420000000 - 999999999) RH Transaxle No. 139-7461

Name: Toro TimeCutter 127cm - 74696 (420000000 - 999999999) RH Transaxle No. 139-7461
SKU: timecutter_127cm_74696_42999999999_rh_transaxle_no_139_7461-grou
Price: 3.88 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro TimeCutter 127cm - 74696 (420000000 - 999999999) RH Transaxle No. 139-7461

Description

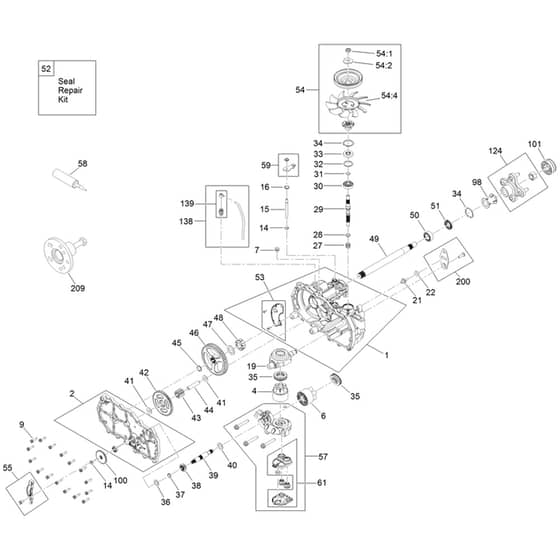

Toro TimeCutter 127cm - 74696 (420000000 - 999999999) RH Transaxle No. 139-7461 Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA106-8674 Available to backorder	Left Hand Main Housing Assembly	£1,027.20 £856.00
2	HA106-8675 Available to backorder	Left Hand Side Assembly	£621.60 £518.00
4	HA110-8561 Available to backorder	Pump Block Assembly	£417.60 £348.00
6	HA103-2666 Available to backorder	Cylinder Block Kit	£594.00 £495.00
7	HA104-2189 Available to backorder	Straight Thread Plug	£29.90 £24.92
9	HA104-5305 Available to backorder	Hex Head Flange (Hhf) Screw	£7.64 £6.37
14	HA106-8677 Available to backorder	External Retaining Ring	£9.92 £8.27
15	HA106-8678 Available to backorder	Bypass Rod	£64.60 £53.83
16	HA106-8679 Available to backorder	Internal Retaining Ring	£10.76 £8.97
19	HA104-5304 Available to backorder	Trunnion Swashplate	£199.92 £166.60
21	HA104-2116 Available to backorder	Stud	£43.06 £35.88
22	HA112-9853 Available to backorder	Friction Puck	£9.08 £7.57
27	HA94-1936 Available to backorder	Block Spring	£9.56 £7.97
28	HA120-5538 Available to backorder	Washer	£6.56 £5.47
29	HA104-5306 Available to backorder	Input Shaft	£345.60 £288.00
30	HA104-5311 Available to backorder	Ball Bearing	£51.44 £42.87
31	HA104-5307 Available to backorder	Retaining Ring	£8.60 £7.17
32	HA104-5308 Available to backorder	Spacer	£9.56 £7.97
33	HA104-5310 Available to backorder	Lip Seal	£44.26 £36.88
34	HA104-5309 Available to backorder	Retaining Ring	£14.34 £11.95
35	HA94-6922 Available to backorder	Thrust Bearing	£71.76 £59.80
36	HA104-5339 Available to backorder	Flat Washer	£9.54 £7.95
37	HA104-5340 Available to backorder	Retaining Ring	£8.60 £7.17
38	HA104-5316 Available to backorder	13 Tooth Gear Pinion	£37.08 £30.90
39	HA106-8683 Available to backorder	Motor Shaft	£286.08 £238.40
40	HA104-5360 Available to backorder	Washer	£11.28 £9.40
41	HA94-1933 Available to backorder	Obs Washer	£8.46 £7.05
42	HA104-5317 Available to backorder	10 Tooth.48 Tooth Gear	£198.72 £165.60
43	HA104-5318 Available to backorder	10 Tooth Jackshaft Gear	£98.08 £81.73
44	HA104-5329 Available to backorder	Jackshaft Pin	£125.62 £104.68
45	HA112-9854 Available to backorder	Retaining Spiral Ring	£6.42 £5.35
46	HA112-9855 Available to backorder	52 Tooth Bull Gear	£215.64 £179.70
47	HA112-9856 Available to backorder	Washer	£11.90 £9.92
48	HA112-9857 Available to backorder	Sleeve Bearing	£28.20 £23.50
49	HA120-7104 Available to backorder	Axle Shaft	£188.88 £157.40
50	HA112-9859 Available to backorder	Axle Bushing	£21.94 £18.28
51	HA112-9860 Available to backorder	Lip Seal	£34.48 £28.73
52	HA106-8686 Available to backorder	Seal Kit	£266.16 £221.80
53	HA106-8697 Available to backorder	Right Hand Expansion Plate Kit	£82.54 £68.78
54	HA116-9708 Available to backorder	[54.2] Washer-Slotted	£5.62 £4.68
54	HA116-9714 Available to backorder	[54.1] Hj Nut	£4.66 £3.88
54	HA135-7364 Available to backorder	[54.4] Fan 7.0 X 10 Blade	£40.20 £33.50
54	HA135-7349 Available to backorder	Fan And Pulley Kit	£149.62 £124.68
55	HA106-8688 Available to backorder	Brake Arm Kit	£57.90 £48.25
57	HA112-9862 Available to backorder	Left Hand (Lh) Center Section Filter Kit	£650.40 £542.00
58	HA104-2147 Available to backorder	Sealant	£158.32 £131.93
59	HA107-2489 Available to backorder	Bypass Arm Kit	£92.12 £76.77
61	HA114-1634 Available to backorder	Filter Kit	£62.70 £52.25
98	HA120-7109 Available to backorder	Axle Tube	£15.54 £12.95
100	HA106-8694 Available to backorder	Brake. Cog Disc	£67.00 £55.83
101	HA115-5057 Available to backorder	Hydro Axle Nut Cover	£20.32 £16.93
124	HA109-5939 Available to backorder	Hub Kit	£153.62 £128.02
138	HA112-9866 Available to backorder	Breather Kit	£72.10 £60.08
139	HA114-1635 Available to backorder	Breather Assembly	£62.70 £52.25
200	HA117-5362 Available to backorder	Control Arm Kit	£33.48 £27.90
209	HA130-8482 Available to backorder	4 Bolt Hub Puller	£454.80 £379.00
