Toro TimeCutter 127cm - 74696 (420000000 - 999999999) Deck Lift

Description

Toro TimeCutter 127cm - 74696 (420000000 - 999999999) Deck Lift Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA137-7093-03 Available to backorder	Deck Lift Assembly	£96.52 £80.43
2	HA138-6021 Available to backorder	Decklift Pivot Bracket	£13.16 £10.97
3	HA137-9844 Available to backorder	Left Hand Arm Assembly	£20.32 £16.93
4	HA137-9846 Available to backorder	Right Hand Arm Assembly	£20.32 £16.93
5	HA139-2350-01 Available to backorder	Hoc Bracket - Red	£19.12 £15.93
6	HA138-2564 Available to backorder	Height Of Cut (Hoc) Adjustment Plate	£9.44 £7.87
7	HA137-7087-03 Available to backorder	Lift Lever	£36.98 £30.82
8	HA138-6050 Available to backorder	Deck Mount Rod	£15.54 £12.95
9	HA119-8810 Available to backorder	Pivot Pin	£19.12 £15.93
10	HA138-2549-03 Available to backorder	Lift Pedal	£30.56 £25.47
11	HA137-7086 Available to backorder	Footlift Plate	£16.74 £13.95
12	HA140-2746-03 Available to backorder	Link Assembly	£33.48 £27.90
13	HA140-3461 Available to backorder	Spacer	£1.66 £1.38
14	HA139-2562 Available to backorder	Pin-Hair[1.8 X 2.56. Cz]	£0.98 £0.82
15	HA138-9753 Available to backorder	Screw	£0.55 £0.46
18	HA137-9847 Available to backorder	Shoulder Screw	£1.13 £0.94
20	HA140-5063 Available to backorder	Hardened Washer	£3.12 £2.60
21	HA139-2611 Available to backorder	Flat Washer	£0.72 £0.60
22	HA63-2290 Available to backorder	Thrust Washer	£3.56 £2.97
23	HA119-4041 Available to backorder	Hex Flange (Hf) Nut	£0.91 £0.76
24	HA119-4042 Available to backorder	Nut-Hf. Ni	£1.10 £0.92

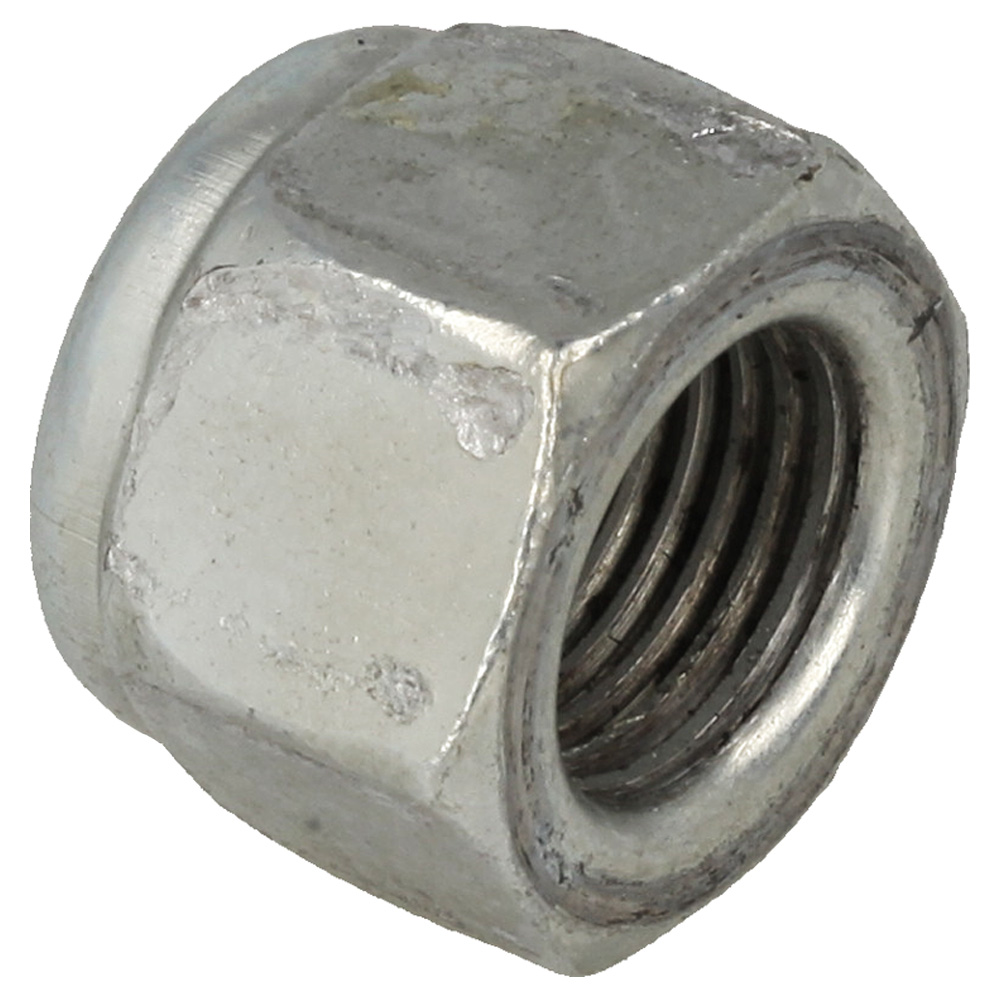

25	HA139-1725 In stock	Hex Nut	Was £1.13 £0.94 Special Price £0.60 £0.50
26	HA140-2748 Available to backorder	Height Of Cut (Hoc) Decal	£6.92 £5.77
27	HA1-633268 Available to backorder	Lever Grip	£16.74 £13.95
30	HA120-2273 Available to backorder	Nylon Washer	£3.28 £2.73
31	HA139-7452 Available to backorder	Foot Lift Pedal	£25.12 £20.93
32	HA140-2093 Available to backorder	Spacer	£0.98 £0.82
33	HA139-2590 Available to backorder	Carriage Screw	£1.13 £0.94

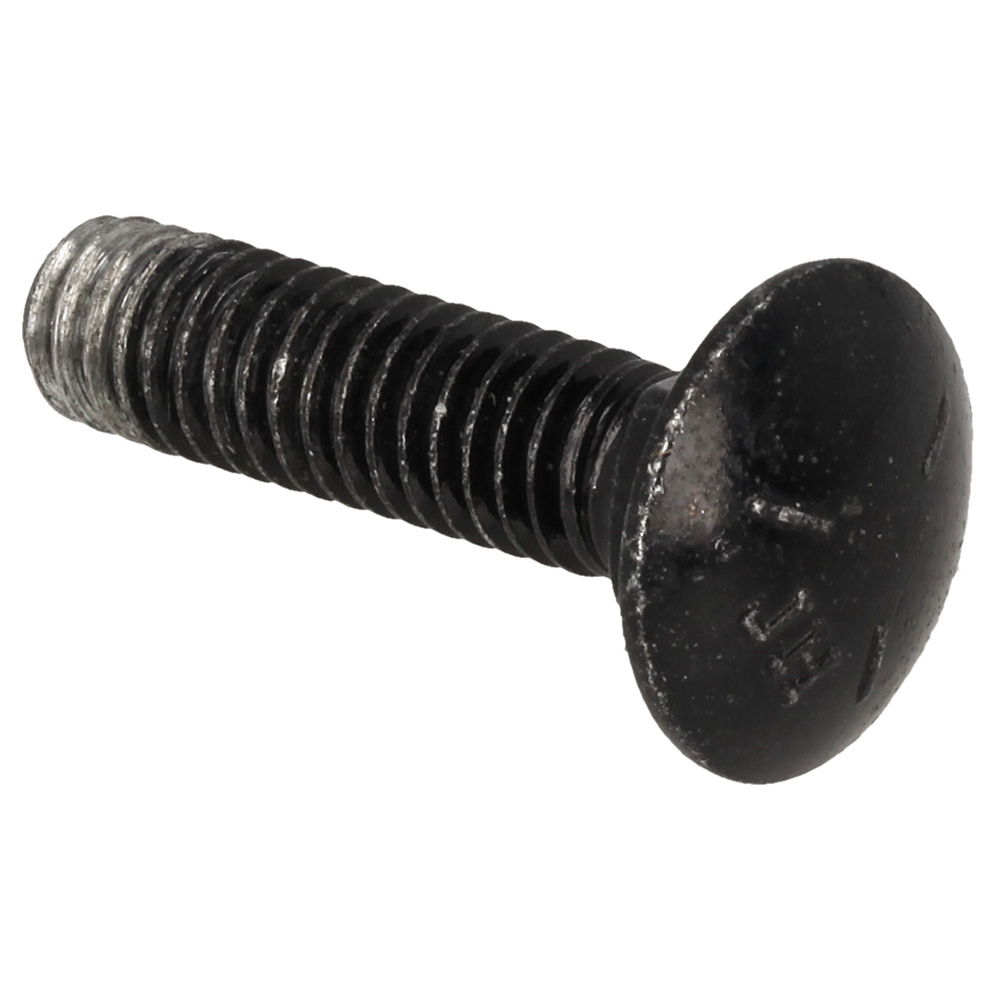

34	HA139-1702 Available to backorder	Carriage Bolt	£1.54 £1.28
35	HA139-2597 Available to backorder	Hex Head Flange (Hhf) Screw	£1.13 £0.94
