Toro TimeCutter 107cm - 74692 (420000000 - 999999999) 42 Inch Deck and Decal

Name: Toro TimeCutter 107cm - 74692 (420000000 - 999999999) 42 Inch Deck and Decal
SKU: timecutter_107cm_74692_42999999999_42_inch_deckdecal-group
Price: 0.4 GBP
Availability: InStock

Part No. timecutter_107cm_74692_42999999999_42_inch_deckdecal-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro TimeCutter 107cm - 74692 (420000000 - 999999999) 42 Inch Deck and Decal

Description

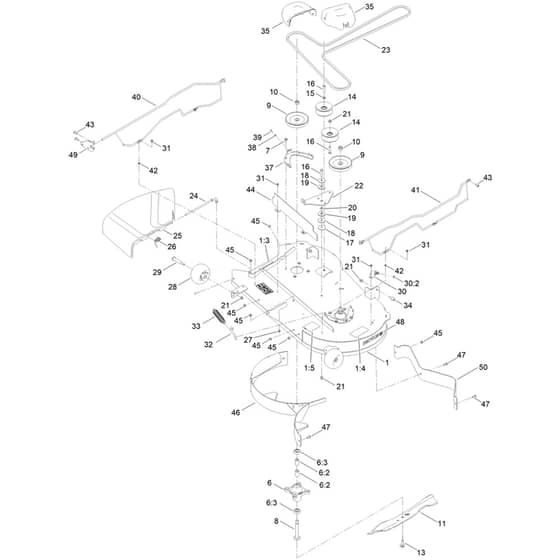

Toro TimeCutter 107cm - 74692 (420000000 - 999999999) 42 Inch Deck and Decal Parts Diagram

	Part No.	Details
1	HA138-9769 Available to backorder	42 Inch Deck Assembly	£777.32 £647.77
1	HA130-0731 Available to backorder	[1.3] Danger Decal	£4.20 £3.50
1	HA132-0872 Available to backorder	[1.4] Decal - Deck Danger	£2.46 £2.05
1	HA105-7015 Available to backorder	[1.5] Belt Routing Decal	£4.69 £3.91
6	HA139-3214 Available to backorder	Spindle Assembly For Timecutter Mower	£82.08 £68.40
6	HA120-7935 Available to backorder	[6.2] Spacer	£2.46 £2.05
6	HA138-9770 Available to backorder	[6.3] Ball Bearing	£9.14 £7.62
7	HA32144-41 Available to backorder	Taptite Screw	£5.94 £4.95
8	HA117-7268 Available to backorder	Spindle Shaft	£49.92 £41.60
9	HA139-2433 Available to backorder	Pulley	£43.31 £36.09
10	HA139-2578 Available to backorder	Hex Nut	£1.60 £1.33
11	HA117-5376-03 Available to backorder	21.6 Inch Mulching Blade	£31.55 £26.29
13	HA145-0411 Available to backorder	Blade Bolt	£3.83 £3.19
14	HA132-9420 In stock	Flat Idler Pulley	£30.76 £25.63
15	HA115-1166 Available to backorder	Flat Washer	£7.14 £5.95
16	HA138-0722 Available to backorder	Hex Head (Hh) Screw	£1.46 £1.22
17	HA139-5802 Available to backorder	Plain Washer	£7.14 £5.95
18	HA139-1726 Available to backorder	Rebound Washer	£3.31 £2.76
19	HA114-0463 In stock	Composite Friction Washer	£8.44 £7.03
20	HA115-4986 Available to backorder	Spacer	£2.34 £1.95
21	HA119-4042 Available to backorder	Nut-Hf. Ni	£1.18 £0.98
22	HA138-7262 Available to backorder	Idler Arm	£21.02 £17.52
23	HA119-8819 Available to backorder	Deck V-Belt For Timecutter Riding Mower	£42.06 £35.05
24	HA137-2019 Available to backorder	Pivot Rod	£14.83 £12.36
25	HA138-7502 Available to backorder	Discharge Deflector	£71.76 £59.80
26	HA138-7268 Available to backorder	Torsion Spring	£3.08 £2.57
27	HA121-4600 Available to backorder	Hex Nut	£1.34 £1.12
28	HA1-603299 Available to backorder	Anti-Scalp & Wear Bar Kit	£28.45 £23.71
29	HA139-2551 Available to backorder	Shoulder Bolt	£6.56 £5.47
30	HA133-9289 Available to backorder	Washout Fitting Assembly	£7.54 £6.28
30	HA133-9290 Available to backorder	[30.2] O-Ring	£1.46 £1.22
31	HA32144-4 Available to backorder	Hex Washer Head (Hwh) Screw	Was £1.60 £1.33 Special Price £0.60 £0.50
32	HA138-7267 Available to backorder	Return Spring Hook	£2.96 £2.47
33	HA138-7265 Available to backorder	Spring Extension	£9.02 £7.52
34	HA139-5871 Available to backorder	Deck Pin	£2.83 £2.36
35	HA144-1905 Available to backorder	Belt Cover	£7.91 £6.59
37	HA139-3272-03 Available to backorder	Bracket Assembly - Belt [Black	£14.83 £12.36
38	HA137-3079 Available to backorder	Plain Washer	£0.48 £0.40
39	HA94-6961 Available to backorder	Screw	£1.09 £0.91
40	HA161-6253 Available to backorder	Left Guard Asm [42 Fab]	£72.36 £60.30
41	HA161-6254 Available to backorder	Right Guard Asm [42 Fab]	£72.36 £60.30
42	HA1-803037 Available to backorder	Retaining Nut	£2.32 £1.93
43	HA138-9753 Available to backorder	Screw	£0.48 £0.40
44	HA137-2039-03 Available to backorder	Shield-Frount [42 Deck Black]	£27.20 £22.67
45	HA119-4041 Available to backorder	Hex Flange (Hf) Nut	£0.83 £0.69
46	HA138-9837-03 Available to backorder	Baffle-Recycling [42 Fab Welded Black]	£304.68 £253.90
47	HA139-2630 Available to backorder	Carriage Bolt	£1.60 £1.33
48	HA119-2368 Available to backorder	Recycler Decal	£6.94 £5.78
49	HA140-5183-01 Available to backorder	Plate-Mount. Guard [Red]	£17.32 £14.43
50	HA140-2701-03 Available to backorder	Deflector [42" Int Black]	£94.56 £78.80
