Toro ProLine 113cm - 31040 (324000285 - 999999999) Axle and Steering Rear

Part No. proline_113cm_31040_324285999999999_axlesteering_rear-group
Toro ProLine 113cm - 31040 (324000285 - 999999999) Axle and Steering Rear
Toro ProLine 113cm - 31040 (324000285 - 999999999) Axle and Steering Rear

Description

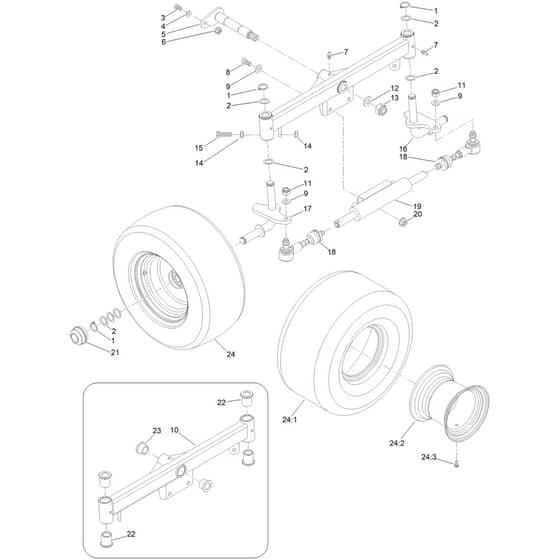

Toro ProLine 113cm - 31040 (324000285 - 999999999) Axle and Steering Rear Parts Diagram

Ref. Img. Part No. Details
  1 Retainer [19 Uni 7435]
Retainer [19 Uni 7435]
HA134-9250
Available to backorder
Retainer [19 Uni 7435]
£0.83 £0.69

  2 Spacer
Spacer
HA134-1354
Available to backorder
Spacer
£4.60 £3.83

  3 Screw
Screw
HA134-1015
Available to backorder
Screw
£0.77 £0.64

  4 Washer [M8. Cz. Uni 6592]
Washer [M8. Cz. Uni 6592]
HA134-1045
Available to backorder
Washer [M8. Cz. Uni 6592]
£0.41 £0.34

  5 Pivot. Rear Axle
Pivot. Rear Axle
HA134-9254
Available to backorder
Pivot. Rear Axle
£61.57 £51.31

  6 Nut
Nut
HA134-1082
Available to backorder
Nut
£0.60 £0.50

  7 Fitting-Grease
Fitting-Grease
HA134-1065
Available to backorder
Fitting-Grease
£2.03 £1.69

  8 Screw
Screw
HA134-1017
Available to backorder
Screw
£1.22 £1.02

  9 Washer
Washer
HA134-1046
Available to backorder
Washer
£0.41 £0.34

  11 Nut
Nut
HA134-3110
Available to backorder
Nut
£1.28 £1.07

  12 Nut
Nut
HA134-1091
Available to backorder
Nut
£4.03 £3.36

  13 Washer
Washer
HA134-3012
Available to backorder
Washer
£0.46 £0.38

  14 Nut [M10 X 1.5 Uni 5588]
Nut [M10 X 1.5 Uni 5588]
HA134-9069
Available to backorder
Nut [M10 X 1.5 Uni 5588]
£4.14 £3.45

  16 Spindle. Rh Rear Wheel
Spindle. Rh Rear Wheel
HA134-9259
Available to backorder
Spindle. Rh Rear Wheel
£96.48 £80.40

  17 Spindle. Lh Rear Wheel
Spindle. Lh Rear Wheel
HA134-9258
Available to backorder
Spindle. Lh Rear Wheel
£96.48 £80.40

  18 Articulation
Articulation
HA134-0860
Available to backorder
Articulation
£154.20 £128.50

  19 Ram [Dual Acting]
Ram [Dual Acting]
HA134-9345
Available to backorder
Ram [Dual Acting]
£310.44 £258.70

  20 Nut
Nut
HA134-3009
Available to backorder
Nut
£0.85 £0.71

  21 Cover. Rear Wheel Hub
Cover. Rear Wheel Hub
HA134-9251
Available to backorder
Cover. Rear Wheel Hub
£6.64 £5.53

  22 Bushing [20-28-35 X 4 X 35]
Bushing [20-28-35 X 4 X 35]
HA134-9255
Available to backorder
Bushing [20-28-35 X 4 X 35]
£11.14 £9.28

  23 Bushing [20-28-35 X 4 X 20]
Bushing [20-28-35 X 4 X 20]
HA134-9256
Available to backorder
Bushing [20-28-35 X 4 X 20]
£6.14 £5.12

  24 [24.2] Rim [5.00-8]
[24.2] Rim [5.00-8]
HA134-9248
Available to backorder
[24.2] Rim [5.00-8]
£143.16 £119.30

  24 Rear Wheel Asm
Rear Wheel Asm
HA134-9249
Available to backorder
Rear Wheel Asm
£237.36 £197.80

  24 [24.1] Tyre [16 X 6.50-8 4Pr]
[24.1] Tyre [16 X 6.50-8 4Pr]
HA134-9247
Available to backorder
[24.1] Tyre [16 X 6.50-8 4Pr]
£160.92 £134.10

  24 [24.3] Valve-Tire
[24.3] Valve-Tire
HA134-1261
Available to backorder
[24.3] Valve-Tire
£3.71 £3.09


Description

Toro ProLine 113cm - 31040 (324000285 - 999999999) Axle and Steering Rear Parts Diagram
