TORNADO PRO 9121 XWSY - 2020-2021 - 2T3040381/ST1 - Stiga Ride On Mower Steering 02 Diagram

Description

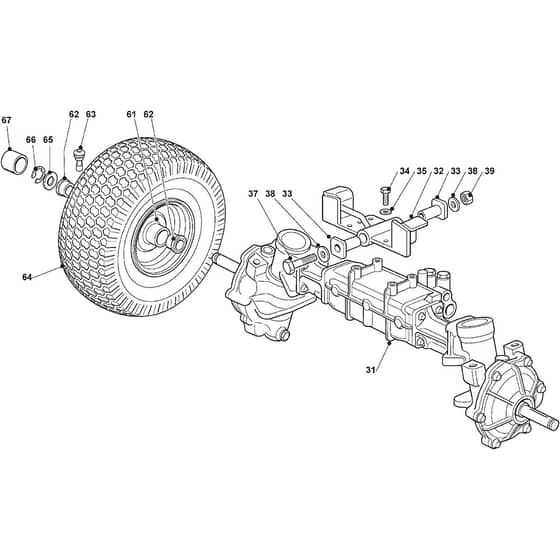

Stiga TORNADO PRO 9121 XWSY Parts Diagram

Product Name - TORNADO PRO 9121 XWSY

Model Year - 2020-2021

Model Type - TH4NSE 118 Hydro SD

Art.N - 2T3040381/ST1

Engine Model - GXV 690

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118400974/0 Available to backorder	Hydrostatic Transaxle - Kanzaki (Kxh7N)	£1,172.45 £977.04
32	MO382547057/1 Available to backorder	Support	£197.09 £164.24
33	MO125040633/0 Available to backorder	Bushing	£15.48 £12.90
35	MO112585100/0 Available to backorder	Grower	£1.55 £1.29
37	MO112695900/0 Available to backorder	Screw	£9.64 £8.03
38	MO112521395/0 Available to backorder	Washer	£1.97 £1.64
39	MO112295801/0 Available to backorder	Nut	£1.97 £1.64
61	MO182001503/0 Available to backorder	Front Wheel Rimm Dark Grey Rimm	£105.58 £87.98
62	MO125122200/2 In stock	Bearing	£11.82 £9.85
63	MO125950000/0 Available to backorder	Valve	£5.35 £4.46
64	MO125590031/0 Available to backorder	Tyre 16X6.00-8 Ply2 P519B (Wanda) Only with CLM Rims - PLY4TL P519B	£72.50 £60.42
65	MO125670005/2 In stock	Washer	£4.08 £3.40
66	MO112001010/0 Available to backorder	Circlip	£1.82 £1.52
67	MO322110239/0 Available to backorder	Stiga Hub Cap [Black]	£1.82 £1.52
