TORNADO 9121 WX - 2022-2023 - 2T3040381/ST2P - Stiga Ride On Mower Body Diagram

Name: TORNADO 9121 WX - 2022-2023 - 2T3040381/ST2P - Stiga Ride On Mower Body Diagram
SKU: tornado_9121_wx_2t3040381_st2p_body-group
Price: 0.87 GBP
Availability: InStock

Part No. tornado_9121_wx_2t3040381_st2p_body-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

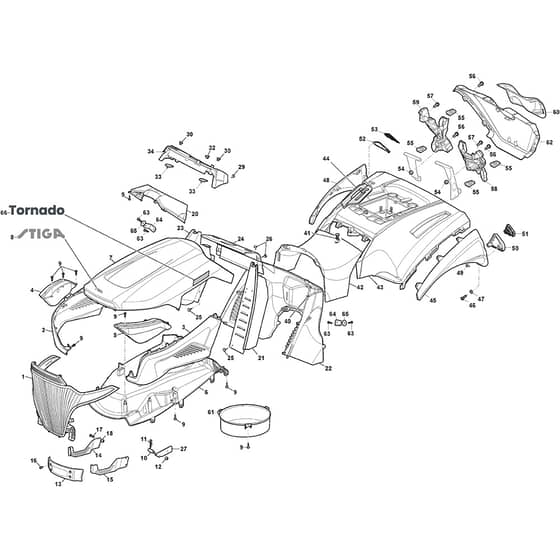

TORNADO 9121 WX - 2022-2023 - 2T3040381/ST2P - Stiga Ride On Mower Body Diagram

Description

Stiga TORNADO 9121 WX Parts Diagram

Product Name - TORNADO 9121 WX

Model Year - 2022-2023

Model Type - TH4NSE 118 Hydro SD

Art.N - 2T3040381/ST2P

Engine Model - GXV 690

	Part No.	Details
1	MO325076981/0 Available to backorder	Frontal Bonnet	£81.66 £68.05
2	MO325207270/0 Available to backorder	Right Bonnet Side	£63.34 £52.78
3	MO325207271/0 Available to backorder	Left Bonnet Side	£57.58 £47.98
4	MO382185508/0 Available to backorder	Right Led Light Assy	£168.91 £140.76
5	MO382185509/0 Available to backorder	Left Led Light Assy	£168.91 £140.76
6	MO325108100/1 Available to backorder	Air Conveyor. Yellow	£88.69 £73.91
7	MO325076978/0 Available to backorder	Upper Engine Hood. Yellow	£118.26 £98.55
8	MO114367495/1 Available to backorder	Stiga Logo Label	£11.60 £9.67
9	MO112728698/0 Available to backorder	Screw	£1.55 £1.29
10	MO125510068/0 Available to backorder	Pin	£1.97 £1.64
11	MO124487998/0 In stock	Cotter Pin	£1.04 £0.87
12	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
13	MO382263503/0 Available to backorder	Bumper	£33.79 £28.16
14	MO382785263/0 Available to backorder	Bracket. Right	£42.22 £35.18
15	MO382785265/0 Available to backorder	Bracket. Left	£42.22 £35.18
16	MO127943054/0 Available to backorder	Screw	£1.84 £1.53
17	MO112800815/0 Available to backorder	Screw	£1.63 £1.36
18	MO112155000/0 In stock	Nut	£1.55 £1.29
20	MO325785550/0 Available to backorder	Extension Dashboard W.O Hole	£28.02 £23.35
21	MO382785021/9 Available to backorder	Left Dashboard Support To S.N 23BA1RON000723	£43.02 £35.85
21	MO382785323/0 Available to backorder	Left Dashboard Support From S.N 23BA1RON000724	£43.02 £35.85
22	MO325785449/0 Available to backorder	Black Dashboard Support	£75.31 £62.76
23	MO382785325/0 Available to backorder	Right Dashboard Support From S.N 23BA1RON000724	£43.02 £35.85
23	MO382785022/10 Available to backorder	Right Dashboard Support To S.N 23BA1RON000723	£43.02 £35.85
24	MO382785247/2 Available to backorder	Stiffening	£246.35 £205.29
25	MO112735403/0 In stock	Screw	£1.55 £1.29
26	MO112735110/0 Available to backorder	Screw	£1.63 £1.36
27	MO325774697/0 Available to backorder	Bracket	£10.85 £9.04
29	MO112728440/0 Available to backorder	Screw	£1.39 £1.16
30	MO325120284/0 Available to backorder	Cap	£2.11 £1.76
32	MO325120233/0 Available to backorder	Cap Starter Control Hole Closing Cap	£3.25 £2.71
33	MO125260000/0 Available to backorder	Grommet	£2.94 £2.45
34	MO325120282/0 Available to backorder	Dashboard. Grey (Cruise Control) with Smart Widescreen	£47.87 £39.89
41	MO125580020/2 In stock	Stake	£8.29 £6.91
42	MO325110509/0 Available to backorder	Grey Central Cover	£49.26 £41.05
43	MO325109754/0 Available to backorder	Yellow Wheels Cover	£147.79 £123.16
44	MO325207184/1 Available to backorder	Cover	£23.71 £19.76
45	MO325207267/0 Available to backorder	Left Wheel Cover	£20.96 £17.47
46	MO112728689/0 In stock	Screw	£1.39 £1.16
47	MO112523020/0 In stock	Washer	£1.55 £1.29
48	MO325207266/0 Available to backorder	Right Wheel Cover	£20.96 £17.47
49	MO112728686/0 In stock	Screw	£1.55 £1.29
50	MO325596502/0 Available to backorder	Left Rear Reflector Support	£3.92 £3.27
51	MO325069101/0 Available to backorder	Left Rear Reflector	£3.52 £2.93
52	MO325596501/0 Available to backorder	Right Rear Reflector Support	£3.92 £3.27
53	MO325069100/0 Available to backorder	Right Rear Reflector	£3.52 £2.93
54	MO112154510/0 In stock	Nut	£1.55 £1.29
55	MO112437507/0 Available to backorder	Rapid Fixing Plate	£1.70 £1.42
56	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
57	MO112735420/0 Available to backorder	Screw	£4.64 £3.87
58	MO325785526/0 Available to backorder	Support. Left	£13.44 £11.20
59	MO325785525/0 Available to backorder	Support. Right	£13.44 £11.20
60	MO325207268/0 Available to backorder	Rear Cover Black	£14.93 £12.44
61	MO325108104/0 Available to backorder	Conveyor L.23	£7.12 £5.93
62	MO325110476/0 Available to backorder	Rear Cover. Yellow	£67.57 £56.31
63	MO112729601/1 Available to backorder	Screw	£1.49 £1.24
64	MO325774703/0 Available to backorder	Bracket	£5.65 £4.71
65	MO112523030/0 Available to backorder	Washer	£1.55 £1.29
66	MO114372973/0 Available to backorder		£8.38 £6.98
