TORNADO 9121 WX - 2022-2023 - 2T3040381/ST2 - Stiga Ride On Mower Transmission Group Diagram

Name: TORNADO 9121 WX - 2022-2023 - 2T3040381/ST2 - Stiga Ride On Mower Transmission Group Diagram
SKU: tornado_9121_wx_2t3040381_st2_transmission_group-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TORNADO 9121 WX - 2022-2023 - 2T3040381/ST2 - Stiga Ride On Mower Transmission Group Diagram

Description

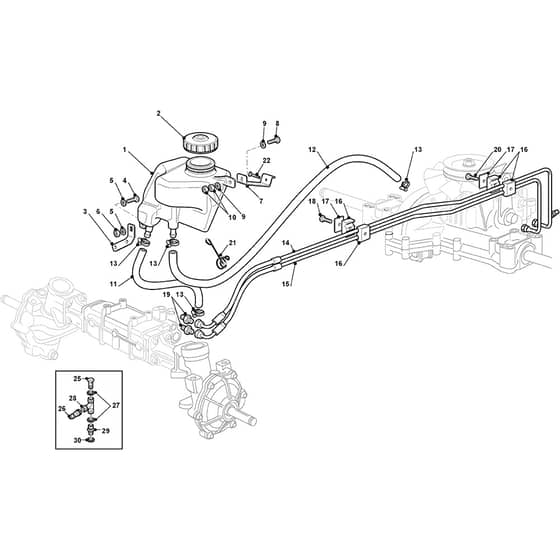

Stiga TORNADO 9121 WX Parts Diagram

Product Name - TORNADO 9121 WX

Model Year - 2022-2023

Model Type - TH4NSE 118 Hydro SD

Art.N - 2T3040381/ST2

Engine Model - GXV 690

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325735127/0 Available to backorder	Tank	£54.90 £45.75
2	MO125795002/0 Available to backorder	Fuel Cap	£27.88 £23.23
3	MO325755089/0 Available to backorder	Bracket	£9.00 £7.50
4	MO112789100/0 Available to backorder	Screw	£1.55 £1.29
7	MO325774729/0 Available to backorder	Rear Fuel Tank Support Bracket	£12.60 £10.50
8	MO112789195/0 Available to backorder	Screw	£1.39 £1.16
9	MO112521320/0 Available to backorder	Washer	£1.55 £1.29
10	MO112154330/0 In stock	Nut	£1.55 £1.29
11	MO325869076/0 Available to backorder	Connecting Tube	£40.82 £34.02
12	MO325869077/0 Available to backorder	Connecting Tube	£40.82 £34.02
13	MO118375059/0 Available to backorder	Fair Led	£14.86 £12.38
16	MO325721000/0 Available to backorder	Support	£2.68 £2.23
17	MO325547249/0 Available to backorder	Plate	£2.53 £2.11
18	MO112735712/0 Available to backorder	Screw From 01-9-2018	£1.69 £1.41
18	MO112689515/0 Available to backorder	Screw To 31-8-2018	£1.55 £1.29
19	MO125651001/0 Available to backorder	Tube Connection	£14.35 £11.96
20	MO112674700/0 Available to backorder	Screw	£1.55 £1.29
21	MO125430239/1 Available to backorder	Spring	£1.97 £1.64
22	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
25	MO112365000/0 Available to backorder	Nut	£7.10 £5.92
26	MO125033107/0 Available to backorder	Click Fast 1.4	£22.38 £18.65
27	MO112524300/0 Available to backorder	Copper Washer 16x22	£1.33 £1.11
28	MO112396000/0 Available to backorder	Eye 3.8 - 1.4	£12.38 £10.32
29	MO125653000/0 Available to backorder	Reduction M.F	£14.08 £11.73
30	MO112524500/0 Available to backorder	Low Self-Locking Nut M8 Uni7474	£1.33 £1.11
