TORNADO 9121 WX - 2022-2023 - 2T3040381/ST2 - Stiga Ride On Mower Transmission Diagram

Name: TORNADO 9121 WX - 2022-2023 - 2T3040381/ST2 - Stiga Ride On Mower Transmission Diagram
SKU: tornado_9121_wx_2t3040381_st2_transmission-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

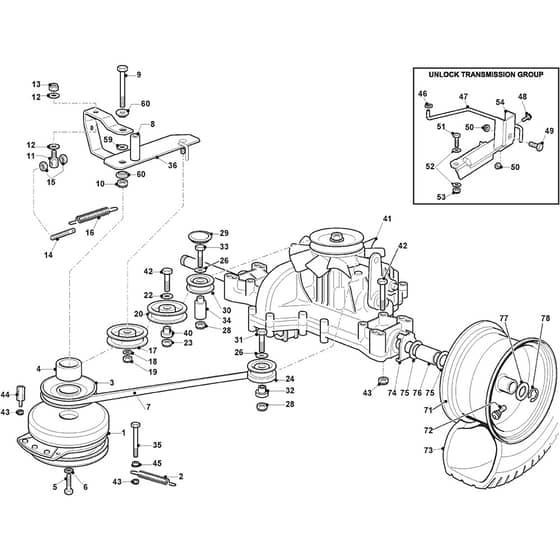

TORNADO 9121 WX - 2022-2023 - 2T3040381/ST2 - Stiga Ride On Mower Transmission Diagram

Description

Stiga TORNADO 9121 WX Parts Diagram

Product Name - TORNADO 9121 WX

Model Year - 2022-2023

Model Type - TH4NSE 118 Hydro SD

Art.N - 2T3040381/ST2

Engine Model - GXV 690

Be the first to review this product

0 product questions

	Part No.	Details
2	MO127430592/0 Available to backorder	Brake Spring	£5.76 £4.80
3	MO182595502/0 Available to backorder	Engine Shaft Extension	£47.58 £39.65
4	MO125160021/0 Available to backorder	Spacer	£5.63 £4.69
5	MO125943013/0 Available to backorder	Screw	£12.67 £10.56
6	MO112543000/0 Available to backorder	Washer	£1.55 £1.29
7	MO135062029/0 Available to backorder	Belt	£113.11 £94.26
8	MO125160054/0 Available to backorder	Spacer	£4.22 £3.52
9	MO112793905/0 Available to backorder	Screw	£1.97 £1.64
11	MO125510168/0 Available to backorder	Pin	£4.50 £3.75
12	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
14	MO125840005/0 Available to backorder	Tie Rod	£2.95 £2.46
15	MO112293200/0 In stock	Nut	£1.55 £1.29
16	MO125430219/1 Available to backorder	Spring	£3.67 £3.06
17	MO125601554/0 In stock	Pulley	£25.68 £21.40
20	MO325601599/0 In stock	Pulley Bearing hole ø15	£19.14 £15.95
24	MO382601522/0 In stock	Pulley	£23.92 £19.93
26	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
29	MO125109521/1 Available to backorder	Cover	£1.55 £1.29
30	MO325601570/1 Available to backorder	Pulley	£24.36 £20.30
32	MO127160064/0 Available to backorder	Spacer	£5.06 £4.22
33	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
34	MO125160024/2 In stock	Spacer	Was £8.29 £6.91 Special Price £5.27 £4.39
35	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
40	MO125160056/0 Available to backorder	Spacer	£4.66 £3.88
41	MO118400975/0 Available to backorder	Hydrostatic Transaxle - Tufftorq (K574D)	£1,401.84 £1,168.20
42	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
43	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
44	MO125598055/0 Available to backorder	Clutch Pin Extension	£14.70 £12.25
45	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
46	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
47	MO125033130/0 Available to backorder	Rod	£7.61 £6.34
48	MO9959-0820-16 In stock	Screw	£1.55 £1.29
49	MO112793102/0 In stock	Screw	£1.55 £1.29
50	MO112293201/0 In stock	Nut	£1.69 £1.41
51	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
52	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
53	MO112155000/0 In stock	Nut	£1.55 £1.29
54	MO382785283/0 Available to backorder	Support	£86.58 £72.15
59	MO125670007/0 In stock	Washer	£1.97 £1.64
60	MO125038002/1 In stock	Bushing	£1.55 £1.29
71	MO182001504/0 Available to backorder	Rear Wheel Rimm Dark Grey Rimm	£119.66 £99.72
72	MO125950000/0 Available to backorder	Valve	£5.35 £4.46
73	MO125590030/0 Available to backorder	Tyre 20X10.00-10 Ply4 P519B (Wanda) Only with CLM Rims - PLY4TL P519B	£125.99 £104.99
74	MO325670025/0 Available to backorder	Washer	£4.08 £3.40
75	MO112521410/0 Available to backorder	Washer	£1.82 £1.52
76	MO125160023/0 Available to backorder	Spacer	£7.31 £6.09
77	MO125670005/2 In stock	Washer	£4.08 £3.40
78	MO112001010/0 Available to backorder	Circlip Id.0.580" Th.0.050"	£1.82 £1.52
