TORNADO 9121 W - 2024-2025 - 2T1950381/ST1 - Stiga Ride On Mower Oil Pan Diagram

Name: TORNADO 9121 W - 2024-2025 - 2T1950381/ST1 - Stiga Ride On Mower Oil Pan Diagram
SKU: tornado_9121_w_2t1950381_st1_oil_pan-group
Price: 1.02 GBP
Availability: InStock

Part No. tornado_9121_w_2t1950381_st1_oil_pan-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TORNADO 9121 W - 2024-2025 - 2T1950381/ST1 - Stiga Ride On Mower Oil Pan Diagram

Description

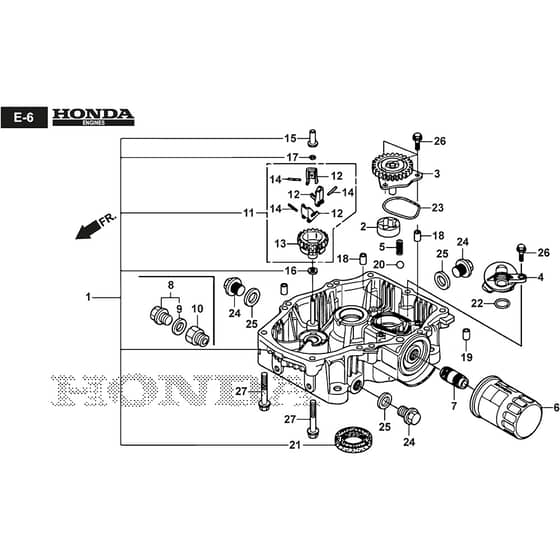

Stiga TORNADO 9121 W Parts Diagram

Product Name - TORNADO 9121 W

Model Year - 2024-2025

Model Type - TNSE 118 Hydro SD

Art.N - 2T1950381/ST1

Engine Model -

	Part No.	Details
1	MO118551716/0 Available to backorder	Pan Assy. Oil	£915.65 £763.04
2	MO118551887/0 Available to backorder	Rotor. Oil Pump Outer	£30.64 £25.53
3	MO118551888/0 Available to backorder	Gear Comp. Oil Pump	£157.86 £131.55
4	MO118551889/0 Available to backorder	Strainer Comp. Oil	£53.39 £44.49
5	MO118551890/0 Available to backorder	Spring. Relief Valve	£3.30 £2.75
6	MO118551895/0 Available to backorder	Cartridge. Oil Filter (Mahle Tennex)	£26.59 £22.16
7	MO118551900/0 Available to backorder	Holder. Oil Filter	£9.31 £7.76
8	MO118551902/0 Available to backorder	Cap Assy. Drain	£9.73 £8.11
10	MO118551915/0 Available to backorder	Adapter. Oil Drain Extension	£24.43 £20.36
11	MO118551967/0 Available to backorder	Governor Assy.	£31.98 £26.65
17	MO118552244/0 Available to backorder	Clip. Governor Holder	£1.22 £1.02
20	MO118552247/0 Available to backorder	Ball. Steel. #15 (15.32)	£3.30 £2.75
21	MO118552253/0 Available to backorder	Oil Seal. 38X58X9	£12.72 £10.60
22	MO118552261/0 Available to backorder	O-Ring. 14.8X2.4	£2.94 £2.45
23	MO118552265/0 Available to backorder	O-Ring. Oil Pump	£6.08 £5.07
24	MO118552272/0 Available to backorder	Bolt. Drain Plug. 20mm	£5.70 £4.75
25	MO118552274/0 Available to backorder	Washer. Drain Plug. 20mm	£1.60 £1.33
