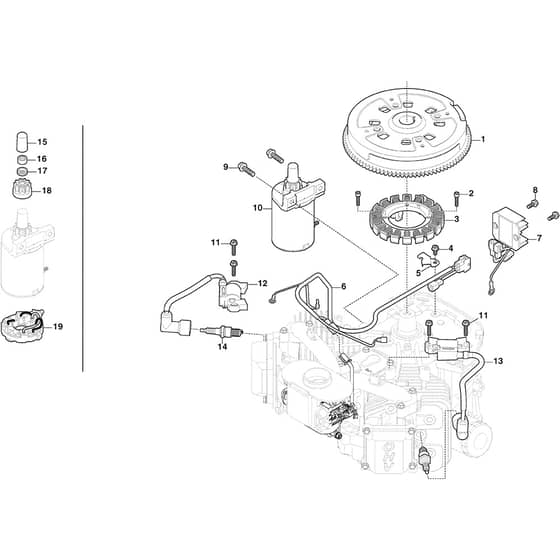

TORNADO 9121 W - 2023-2024 - 2T1945481/ST2 - Stiga Ride On Mower Starter Motor Diagram

Name: TORNADO 9121 W - 2023-2024 - 2T1945481/ST2 - Stiga Ride On Mower Starter Motor Diagram
SKU: tornado_9121_w_2t1945481_st2_starter_motor-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TORNADO 9121 W - 2023-2024 - 2T1945481/ST2 - Stiga Ride On Mower Starter Motor Diagram

Description

Stiga TORNADO 9121 W Parts Diagram

Product Name - TORNADO 9121 W

Model Year - 2023-2024

Model Type - TNSE 118 Hydro SD

Art.N - 2T1945481/ST2

Engine Model - ST 650 Twin

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118551593/0 Available to backorder	Flywheel	£207.38 £172.82
3	MO118551594/0 Available to backorder	Coil Assy. Charge	£64.63 £53.86
6	MO118551599/0 Available to backorder	Harness Assy	£12.82 £10.68
7	MO118551596/0 Available to backorder	Rectfier	£53.87 £44.89
10	MO118551595/0 Available to backorder	Start Motor Assy	£157.01 £130.84
12	MO118551598/0 Available to backorder	Electronic Coil	£34.44 £28.70
13	MO118551597/0 Available to backorder	Electronic Coil	£34.44 £28.70
14	9408 In stock	Spark Plug (Rn9Yc) RN9YC	£4.56 £3.80
15	MO118552282/0 Available to backorder	Plug	£1.55 £1.29
16	MO118552283/0 Available to backorder	Collar	£4.08 £3.40
17	MO118552284/0 Available to backorder	Spring	£6.76 £5.63
18	MO118552285/0 Available to backorder	Pinion	£36.59 £30.49
19	MO118552281/0 Available to backorder	Carbon Brush	£23.51 £19.59
